Featured Architectural Aluminum Door & Window Systems
Tested to international structural, air permeability, and wind pressure standards for commercial and luxury residential projects.
As2047 Australian Windows and Door Double Glazed Stacker Doors Commercial Exterior Patio Stacking Balcony Aluminum Sliding Doors
Cast Aluminum Front Entry Door Rust Proof Security Exterior Door Modern Design Custom Size for Luxury Villa Wholesale
Modern Design Double Glazing Insulated Glass Windows For House Office Aluminum Alloy Casement Glass Windows and Doors
HUASIN Custom Slim Frame Aluminum Clad Wood Window with Triple Glazing and Security Mesh Screen Aluminum Clad Wood Window
Customized White Aluminum French Folding Door for Living Room Comfort Room Balcony Exterior Bifold Patio Door
Double Glass California Architectural Industrial Aluminum French Doors Exterior/aluminum Hinged Door with Screen

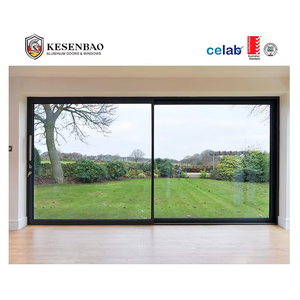

CE Exterior Double Glazed Slim Aluminum Sliding Glass Door System French Patio Door for Houses Villa
Architectural White Paper
EN 14351-1 CE Certification Blueprint for High-Performance Aluminium Bifold Systems
Navigating European standard conformity, thermal envelope integrity, and wind-load resistance for B2B procurement professionals.
In modern architectural fenestration, selecting a validated CE Certified Aluminium Bifold Doors Supplier is not merely a matter of regulatory compliance—it is an essential risk mitigation strategy for commercial developers, general contractors, and structural engineers. The mandatory European Standard EN 14351-1 dictates severe test performance parameters for windows and external pedestrian doorsets. Achieving compliance requires comprehensive Initial Type Testing (ITT) and Factory Production Control (FPC) verified by notified bodies.
Key Takeaway: The CE Marking Mandate
For aluminium folding door systems imported into the European Economic Area (EEA) and global jurisdictions honoring EN benchmarks, the CE mark mandates rigorous empirical proof regarding air tightness (EN 12207), water tightness (EN 12208), wind resistance (EN 12210), and overall thermal transmittance (U-value per EN ISO 10077-2).
1. Mechanical Durability & Dynamic Structural Integrity
Aluminium bi-folding door assemblies operate under complex cantilever dynamics. As multi-panel sashes fold and slide along upper and lower tracks, systemic deflections occur. A qualified CE certified supplier utilizes primary virgin alloy extruded 6063-T5 aluminium profiles with nominal structural wall thicknesses ranging from 2.0 mm to 3.0 mm. Tensile strength ($\sigma_m \ge 175 \text{ MPa}$) and yield strength ($\sigma_{0.2} \ge 130 \text{ MPa}$) ensure structural rigidity under prolonged operating cycles (tested to EN 1191 Class 3 - 20,000 cycles minimum).
2. Thermal Separation via Advanced Polyamide Thermal Breaks
Uninsulated aluminium exhibits high thermal conductivity ($\lambda \approx 160-220 \text{ W/m·K}$). To achieve energy code requirements such as Passivhaus or EU EPBD targets, top-tier suppliers insert precision-engineered multi-chamber Polyamide (PA66-GF25 with 25% glass fiber reinforcement) thermal break strips. This mechanical barrier drops profile thermal conductivity dramatically, enabling full system frame U-values ($U_f$) down to 1.1 W/m²K when combined with argon-filled triple-pane Low-E insulated glass units (IGUs).
Multi-Chamber Profiles
Internal multi-chamber structural design provides superior torsional rigidity, housing multi-point locking rods while isolating thermal convection paths.
Continuous EPDM Sealing
Triple-layer vulcanized EPDM weather gaskets along outer frames and panel junctions seal against micro-gaps, achieving air tightness up to Class 4 (600 Pa).
Pressure-Equalized Drainage
Concealed cascade drainage slots prevent hydrostatic pressure buildup, repelling heavy rain penetration under severe storm loads up to Class 9A (600 Pa).
Factory Infrastructure & Scale
Zenith-Tier Manufacturing Infrastructure: Foshan Production Hub
Integrating 15+ years of export engineering with a 20,000 m² automated manufacturing footprint.
State-of-the-Art Production & Quality Control Gates
Operating from Foshan, Guangdong—the epicenter of global architectural aluminum extrusion—our facility combines CNC automated double-head cutting saws, four-corner pneumatic crimping machines, and automated polyurethane corner-gluing injection technology.
Every bifold panel undergoes dynamic load testing, corner alignment checks ($\le 0.5 \text{ mm}$ tolerance), and hardware cycle validations before packaging. We adhere strictly to ISO 9001 Quality Assurance protocols, providing complete material traceability for every project batch.
Standard Factory Specifications
- Production Base: 20,000 m² Integrated Facility
- Alloy Standard: 6063-T5 Virgin Billet
- Anodizing / Coating: Qualicoat Class 2 / Powder Coat
- Hardware Durability: 200,000 Cycle Testing Rating
- Export Destination: 40+ Countries Worldwide
- Standard Lead Time: From 15 Days (Drawings Approved)
Engineered Performance Comparison
Architectural Systems Technical Specifications Matrix
Comparative baseline parameters for modern aluminium folding, sliding, and casement envelope solutions.
| System Type | Structural Profile Depth | Thermal Break Width | Acoustic Insulation (STC/Rw) | Wind Load Resistance | Target Architectural Application |
|---|---|---|---|---|---|
| Heavy-Duty CE Bifold Series | 75 mm – 90 mm | 24 mm – 34 mm PA66 | Rw up to 42 dB | Class C5 (3000 Pa) | Luxury Villa Balconies, High-End Commercial Patios |
| Ultra-Slim Sightline Bifold | 65 mm – 75 mm | 20 mm – 28 mm PA66 | Rw up to 38 dB | Class C4 (2400 Pa) | Modern Residential Living Openings, Urban Extensions |
| Panoramic Lift & Slide System | 110 mm – 150 mm | 30 mm – 39 mm PA66 | Rw up to 45 dB | Class C5 (3500 Pa) | Coastal Mansions, High-Rise Penthouse Terraces |
| Thermal Break Casement Series | 65 mm – 90 mm | 24 mm PA66 | Rw up to 44 dB | Class E1500 (1500 Pa) | Low-Energy Buildings, Commercial Façades |
| Architectural Stacker Doors | 100 mm – 135 mm | 20 mm – 24 mm PA66 | Rw up to 40 dB | Class C4 (2500 Pa) | Hospitality Terraces, Indoor-Outdoor Resturants |
Market Intelligence & Forecast
Future Sourcing & Procurement Trends in Aluminium Bifold Doors (2025–2035)
Analyzing decarbonization, smart building integration, and ultra-minimalist engineering across global markets.
The global market for architectural aluminium bifold doors is undergoing a paradigm shift driven by stringent energy efficiency directives, net-zero carbon mandates, and shifting aesthetic preferences toward structural glass transparency. Buyers and specifiers auditing a CE Certified Aluminium Bifold Doors Supplier must evaluate long-term technology roadmaps to maintain strategic project alignment.
Trend 1: Decarbonization & Recycled Profile Feedstock
Emboided carbon footprint calculations (EPD - Environmental Product Declarations) are becoming mandatory in Western European and North American building codes. Leading suppliers are transitioning to low-carbon primary aluminium billets produced via hydroelectric smelting ($\le 4.0 \text{ kg CO}_2/\text{kg Al}$) and incorporating up to 75% post-consumer recycled aluminium scrap. This drastically reduces Scope 3 supply chain emissions without sacrificing structural alloy tempering or surface coating adhesion.
Trend 2: Ultra-Narrow Stile Sightlines with Concealed Rollers
Architects demand maximum daylight coefficients ($VLT \ge 70\%$). Traditional folding doors featured bulky profile stiles of 140–160 mm. Sourcing trends favor ultra-slim interlock profiles under 100 mm total visible sightline. Achieving this requires high-modulus structural silicone bonding (IGU acting as a structural stiffener) and heavy-duty concealed stainless steel carriage assemblies capable of carrying single sash weights exceeding 300 kg smoothly.
Trend 3: Smart Access Control & Motorized Automated Folding
Commercial venues and accessible luxury residences are moving from manual lever locks to motorized bifold actuation integrated into building management systems (BMS). Next-generation bifold systems incorporate multi-point electro-mechanical locking gear, anti-pinch infrared safety sensors, and concealed linear motor drives operated via smartphone apps or biometrics.
Low-Carbon Profiles
Sourcing billets processed with clean hydro energy reduces carbon intensity to meet Green Building Council (LEED/BREEAM) points.
Vacuum Insulated Glass
Integration of VIG units yields overall door U-values of $0.6-0.8 \text{ W/m²K}$ within slim profile depths traditionally reserved for double glazing.
Surface Technologies
Super-durable fluorocarbon (PVDF) and anodized finishes engineered to resist 5,000+ hours of salt spray exposure for coastal installs.
Zero-Threshold Transitions
Flush-recessed floor tracks with integrated magnetic weather flaps deliver ADA barrier-free access alongside water tightness.
Strategic Buyer's Guide
How to Audit an OEM/ODM Aluminium Door Supplier
A 4-step framework for commercial importers, developers, and fenestration wholesalers.
1
Certificates & Test Reports
Verify CE (EN 14351-1), AS2047, NFRC, or AAMA test certificates directly with accredited third-party laboratories like Intertek, TUV, or SGS.
2
Alloy & Gasket Verification
Confirm the raw material is genuine virgin 6063-T5 alloy. Ensure seal gaskets are 100% EPDM rather than cheap PVC which degrades under UV.
3
Hardware System Audit
Evaluate hardware origin and cycle ratings. High-traffic bifolds require top-hung heavy-duty stainless steel wheels and multi-point locking gear.
4
Export Packaging Standards
Demand fully enclosed fumigation-free plywood crates, surface protective films, corner protectors, and moisture-absorbent desiccant packs.
Frequently Asked Questions
Technical & Sourcing FAQ for Bifold Door Procurement
In-depth answers addressing structural engineering, minimum order quantities, compliance, and logistics.
Why is CE Certification critical when importing aluminium bifold doors?
CE certification per EN 14351-1 serves as official verification that the door system meets strict European safety, structural, thermal, and environmental standards. It protects project developers and importers from legal non-compliance penalties, insurance claim rejections, and structural failures under extreme weather conditions. Verified suppliers provide audited Factory Production Control (FPC) and Initial Type Test (ITT) documentation for mandatory project submittals.
What is your Minimum Order Quantity (MOQ) and production lead time?
Our flexible manufacturing framework supports custom projects with an MOQ starting from just 50 pieces or combined window/door schedules for a full project container. Standard production lead times run from 15 to 25 calendar days following CAD shop drawing approval and deposit receipt, depending on profile powder coating finishes and glass configuration complexity.
What U-values can your thermal break bifold systems achieve?
Depending on profile depth (65 mm to 90 mm), polyamide thermal break width (20 mm to 34 mm), and glazing configuration, our systems achieve total door thermal transmittance ($U_w$) values as low as 1.1 W/m²K. Achieving optimal energy ratings typically utilizes double or triple-glazed Low-E units filled with 90%+ Argon gas and warm-edge structural spacers.
How do you ensure water tightness on flush threshold bottom tracks?
Flush-mounted or low-threshold tracks utilize concealed cascade drainage channels paired with sub-track weep holes that direct driven rainwater outward. Dynamic weather-sealing is maintained via continuous multi-layer EPDM brush seals and drop-down bottom gaskets that engage when the locking handle is turned, preventing water ingress even during high wind-driven storm events.
Do you offer OEM/ODM customization for architectural developers and distributors?
Yes. We specialize in custom extrusions, custom die creation, private-label branding, customized installation flange geometries, specialized RAL/wood-grain surface finishing, and custom hardware integration (e.g., German Siegenia, HOPPE, or Sobinco systems) tailored to regional market demands.
Which international structural testing standards do your products satisfy?
Our fenestration product lines are tested and qualified against CE (EN 14351-1), Australian Standard AS2047, North American NFRC/AAMA ratings, and ISO 9001 quality management benchmarks. Detailed test reports covering wind pressure, water tightness, air infiltration, and acoustic STC ratings are readily available for engineering submittals.
Accelerate Your Project with Certified Bifold Solutions
Partner with an established Foshan export manufacturer. Send us your door schedules, CAD drawings, or project specifications for an engineered quote within 24 hours.
