CE Certified Aluminium Door Systems
Direct factory configuration of high-performance architectural doors. Manufactured under strict ISO 9001 and CE EN 14351-1 criteria for global commercial and luxury residential projects.
Custom Aluminum Sliding Door With Fly Screen Double Glazed Soundproof Patio Balcony Door

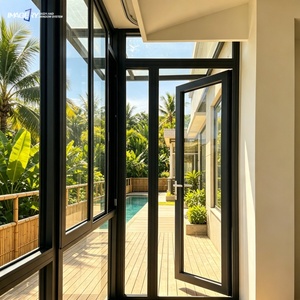

Modern Aluminium Casement Swing Door Triple Glazed Glass for Balcony Patio Front Entry Residential

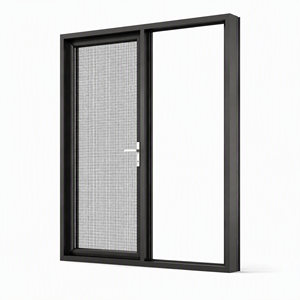

Modern Aluminum Alloy Casement Door With Mosquito Net Sound Insulation For Residential House Villa Custom Size
Custom Aluminum Sliding Door With Integrated Fly Screen Double Glazed Soundproof Patio Balcony Door for Residential Villa Build

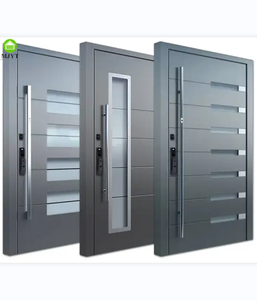

Garden Gate New Luxury Foshan Factory Aluminum Entrance Main Door with Glass for Villas Security Metal Door 3D Modeled

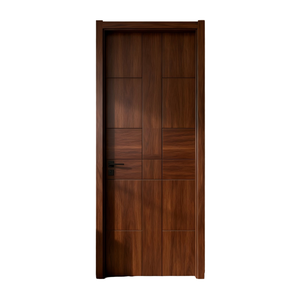

LT JINGMU Luxury Modern Magic Waterproof Aluminum Alloy Interior Doors for Dining Room with Finished Surface and 1 Year Warranty

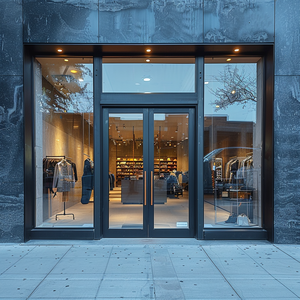

Store Front Door Factory Price Commercial Doors Slidng System Aluminum Frame Tempered Glass Storefront Door

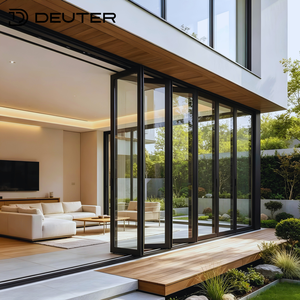

Hidden Hinge Design Thermal Break Aluminum Accordion Folding Doors Exterior Bifold Glass Door Modern Residential Garden Patio
CE Certified Aluminium Ka Door Systems: Structural Rigor & Compliance
In modern architectural engineering, the designation of CE Certified Aluminium Ka Door systems represents an uncompromising benchmark of structural safety, acoustic mitigation, and energy conservation. Sourcing aluminium fenestration components directly from Foshan—the epicenter of global architectural extrusions—requires global procurement teams to look beyond surface aesthetics and evaluate mechanical properties, thermal transmittance coefficients, and verified certification frameworks under European Standard EN 14351-1:2006+A2:2016.
As a premiere OEM/ODM manufacturer operating a 20,000 m² state-of-the-art facility, Zenic Window & Door Technology Co., Ltd. bridge high-capacity automated extrusion with rigorous engineering validation. The industry colloquial term "Aluminium Ka Door" across South Asian, Middle Eastern, and European procurement hubs specifies high-tensile alloy door assemblies engineered with multi-chamber thermal breaks, reinforced stainless steel roller tracks, and integrated security multi-point hardware systems.
Technical Benchmark Matrix: Standard vs. CE Certified Aluminium Ka Door
This authoritative technical matrix outlines performance tolerances mandatory for global commercial tenders and luxury residential specifications:
| Engineering Parameter | Standard Aluminium Door | ZENIC CE-Certified Ka Door | Testing Protocol / Compliance |
|---|---|---|---|
| Alloy Composition & Temper | Recycled 6063-T5 (Wall ≤1.4mm) | Virgin 6063-T5 Alloy (Wall 2.0mm–3.0mm) | GB/T 5237.1 / EN 755-2 Standard |
| Thermal Transmittance (U-Value) | 3.5 – 5.2 W/m²K (Non-Thermal) | 1.1 – 1.8 W/m²K (PA66GF25 Polyamide Break) | EN ISO 10077-2 / NFRC Certified |
| Acoustic Insulation (Rw) | 20 – 25 dB (Single Glazed) | 38 – 45 dB (Acoustic Laminate Triple IGU) | EN ISO 140-3 / EN ISO 717-1 |
| Air Permeability | Class 2 (300 Pa) | Class 4 (600 Pa High-Sealing) | EN 12207 / AAMA 101 |
| Water Tightness | Class 3A (150 Pa) | Class E1050 (1050 Pa Hurricane Rating) | EN 12208 Pressure Equalized |
| Hardware Mechanical Durability | 25,000 Operational Cycles | 200,000 Tested Cycles (Multi-point Lock) | EN 13126-1 / Heavy-Duty Rollers |
Enterprise Advantages: Why Global Developers Partner with ZENIC
Combining architectural engineering expertise with integrated supply chain advantages to deliver turn-key fenestration packages across 40+ countries.
Precision Alloy Metallurgy
We utilize strictly virgin 6063-T5 aluminum billets extruded through computerized multi-cavity dies. Profiles feature a consistent wall thickness ranging from 2.0mm to 3.0mm, preventing warping under extreme wind loads up to 1,000 N.
Pin-&-Glue Corner Assembly
Structural integrity is guaranteed through hydraulic corner crimping combined with two-component polyurethane corner adhesives. This ensures zero water penetration at frame joints and long-term frame squareness during building settlement.
Triple-Sealed EPDM Gaskets
Continuous synthetic EPDM weather-stripping maintains elasticity across operating temperatures from -40°C to +80°C. Three distinct seal lines block wind-driven rain and urban noise effectively.
Certified Hardware Integration
Equipped with heavy-duty multi-point locking systems, stainless steel 304 hinges, and whisper-quiet tandem rollers. Hardware components undergo 500-hour neutral salt spray testing (NSS) for coastal anti-corrosion protection.
Future Procurement Trends in Modern Aluminium Door Systems
As international construction codes pivot aggressively toward net-zero carbon footprints and stringent thermal efficiency thresholds, procurement directors must anticipate structural market shifts over the next decade. Sourcing CE-certified Aluminium Ka Door systems requires alignment with three critical global trends:
1. Thermal Break Decarbonization (EPD Compliance)
EU and North American building directives increasingly require Environmental Product Declarations (EPDs). Sourcing doors featuring low-carbon recycled aluminum content combined with high-grade PA66GF25 polyamide thermal breaks dramatically lowers embodied carbon metrics while securing high LEED and BREEAM building points.
2. Ultra-Slim Sightlines with Massive Glazing
Architectural demand is moving away from bulky frames toward panoramic views. Modern heavy-duty lift-and-slide systems utilize interlock stiles as narrow as 20mm–25mm while supporting panel weights exceeding 400 kg via motorized drive mechanisms and concealed hydraulic dampening.
3. Smart Home Access Integration
Next-generation commercial and villa doors require built-in electromechanical multipoint locks compatible with biometrics, RFID, and smart building management systems (BMS). Concealed wiring routes integrated directly into aluminum profile extrusions are fast becoming standard factory shop drawing specs.
Industry Development Trends in Aluminium Door Manufacturing
The manufacturing landscape for high-spec aluminum doors is transitioning from traditional manual assembly to CNC-driven automated precision. Manufacturers based in Foshan are leading this evolution by integrating aerospace-grade machining techniques into architectural production lines.
Automated CNC Profile Processing & Tolerances
Leading suppliers utilize 5-axis CNC machining centers capable of milling, drilling, and routing 6-meter aluminum profiles in a single setup. This eliminates cumulative manual measurement errors, securing hole position tolerances within ±0.1mm. Such precision ensures that multi-point locking rods and concealed hinges align perfectly without site adjustments.
Advanced Surface Finishing Tech (Qualicoat Class 2)
Finishing technologies have evolved beyond basic anodizing. Modern CE-compliant factories apply fluorocarbon (PVDF) and super-durable Qualicoat Class 2 powder coatings. These specialized surface finishes resist chalking, UV degradation, and salt-air oxidation for over 25 years in harsh coastal environments.
Integrated Drainage & Pressure Equalization
Modern door systems utilize concealed cascade drainage channels with non-return valves. By equalizing internal pressure within the profile chamber against external wind pressure, water is rapidly discharged without risking back-siphonage into interior living spaces under storm conditions.
Acoustic Laminated Triple-Glazing Engineering
To combat urban sound pollution, modern aluminum doors incorporate warm-edge spacer technology separating gas-filled (90% Argon) triple-pane glass units. Integrating acoustic PVB laminated glass panes drastically reduces low-frequency traffic noise by up to 45 dB.
Frequently Asked Questions for Aluminium Door Procurement
Everything you need to know about international certification, MOQ, technical specifications, and shipping logistics.
What specific parameters make an Aluminium Ka Door "CE Certified"?
CE Certification for doors falls under the European Harmonized Standard EN 14351-1. To carry the CE mark legally, the complete assembly (aluminum profile, glass unit, weather gaskets, and hardware) must undergo independent laboratory testing for air permeability (EN 12207), water tightness (EN 12208), wind load resistance (EN 12210), and thermal transmittance (EN ISO 10077-2). Factories must also maintain certified Factory Production Control (FPC) under ISO 9001.
What is the Minimum Order Quantity (MOQ) and lead time for factory orders?
Our baseline factory MOQ starts at 50 pieces per project order. We allow buyers to mix different window and door types (e.g., sliding doors, heavy-duty casements, bifold systems) within a single container to meet minimums. Standard manufacturing lead time is 15 to 25 days from final CAD shop drawing approval and deposit receipt.
How do you ensure zero glass breakage and frame damage during ocean freight?
Every unit is wrapped in protective EPE foam film, reinforced with plastic corner protectors, and sealed in fully enclosed, fumigation-free plywood export crates. Crates are equipped with structural bottom skids for forklift handling and loaded into shipping containers with heavy-duty nylon strapping and air bags to prevent shifting in transit.
Can ZENIC customize door profiles, colors, and hardware branding (OEM/ODM)?
Yes. As an authentic Foshan manufacturer, we offer complete OEM/ODM customization. We can extrude proprietary profile dies, apply custom RAL powder coatings, metallic anodizing, or Italian heat-transfer wood-grain finishes. Furthermore, we support private-label laser etching on glass, frame extrusions, and hardware handles for global distributors.
What structural alloy grade is utilized in ZENIC door profiles?
We strictly utilize virgin 6063-T5 architectural aluminum alloy, avoiding scrap or recycled aluminum alloys that introduce structural brittleness. The T5 heat treatment process optimizes mechanical tensile strength (≥160 MPa) and yield strength (≥110 MPa), ensuring profile rigidity under high wind pressures.
How does ZENIC assist architects and contractors with engineering submittals?
Our in-house facade engineering team provides detailed 2D/3D CAD shop drawings, structural wind-load calculation reports, thermal simulation models, and complete test certification packages (CE, NFRC, AS2047) required by local building authorities for project approval.
