Architectural Product Catalog
High-Performance Aluminum & Timber Door Systems
Explore our export-certified fenestration lineup engineered for luxury residential villas, commercial storefronts, and passive building designs.

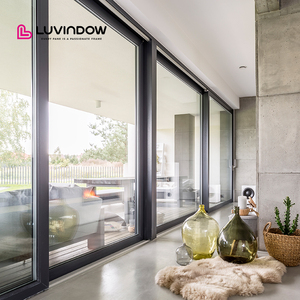

Hurricane Impact Thermal Break Exterior Patio Sliding Doors
Modern Aluminum Alloy Soundproof Fireproof Sliding Door
Waterproof Polymer Modern Wooden Double Pivot Main Entrance Door
Thermal Break Tilt & Turn Engineering Window & Door System
Commercial Storefront Custom Soundproof Automatic Swing Doors
Simple Design Tempered Glass Patio Casement Swing Door

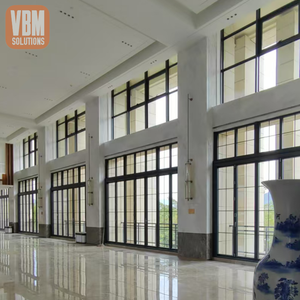

Heavy Duty Commercial Aluminum Bi-Fold Patio Door System
Technical Whitepaper & Procurement Analysis
Engineering Excellence in CE Certified Aluminum Clad Wood Door Manufacturing
In modern architectural fenestration, the demand for CE certified aluminum clad wood doors has experienced exponential growth across European, North American, and Australian B2B markets. Combining the organic warmth, acoustic absorption, and tactile luxury of natural timber on the interior with the structural armor, UV resistance, and weatherproofing of extruded 6063-T5 aluminum alloy on the exterior, clad wood hybrid doors represent the pinnacle of high-performance building envelope technology.
Key Insight: Technical Superiority of Composite Fenestration
Unlike traditional solid timber doors that suffer from moisture-induced expansion, warping, and surface rot, or monolithic aluminum doors that can present thermal bridging challenges if uninsulated, aluminum clad wood doors utilize an decoupled snap-clip connection system (Polyamide 66 + 25% glass fiber clips). This allows independent thermal expansion coefficients between exterior metal and interior wood, eliminating structural deflection across extreme ambient temperatures (-30°C to +60°C).
1. Architectural Anatomy & Material Selection Standards
Factory fabrication of European standard CE marked (EN 14351-1) aluminum clad wood entry, patio, and bi-fold doors relies on rigorous raw material selection gates:
- Interior Timber Substrate: Multi-layer finger-jointed engineered timber laminated under high pressure to prevent internal warping. Preferred species include FSC-certified White Pine, European Larch, Red Oak, and Quarter-Sawn Teak, treated with water-based eco-friendly primers resistant to fungal decay. Moisture content is strictly maintained at 10% ± 2%.
- Exterior Aluminum Profile: High-precision extruded 6063-T5 aluminum profiles with wall thicknesses ranging between 1.8mm and 2.5mm. Surface coatings feature AkzoNobel fluorocarbon (PVDF) or Qualicoat Class 2 powder coating, passing 3,000 hours of continuous salt spray corrosion resistance testing.
- Thermal Isolation Clips: High-density Nylon PA66-GF25 structural clips maintain a continuous 5mm ventilation cavity between wood and aluminum, preventing condensation buildup while allowing thermal differential movement.
- Acoustic & Weather Gasket Matrix: Triple-seal EPDM continuous vulcanized gasket strips paired with silicone foam seals, yielding air permeability rating up to Class 4 (EN 12207) and water tightness up to Class E900 (EN 12208).
| Performance Parameter | Testing Standard (EU / Global) | Factory Specification Value | Architectural Benefit |
|---|---|---|---|
| Thermal Transmittance (U-Value) | EN ISO 10077-2 / NFRC | 0.78 – 1.1 W/m²K | Meets Passive House and Net-Zero Building energy codes. |
| Acoustic Insulation (Rw) | EN ISO 140-3 | 38 dB – 45 dB | Superior noise reduction for urban & high-traffic developments. |
| Wind Load Resistance | EN 12210 / AAMA 101 | Class C5 (3000 Pa) | Withstands extreme gale forces & high-rise coastal pressures. |
| Air Permeability | EN 12207 | Class 4 (600 Pa) | Eliminates interior draft & micro-dust infiltration. |
| Hardware Life Durability | EN 13126-1 / EN 1191 | 200,000 Open/Close Cycles | 10+ Year maintenance-free operational lifecycle. |
2. CE Certification (EN 14351-1) & Factory Production Control (FPC)
Exporting fenestration products to the European Union and global markets demanding CE compliance requires more than a mere stamp; it demands verified Factory Production Control (FPC) audit trails. As a leading manufacturer and exporter in Foshan, China's aluminum hub, our production lines follow ISO 9001 quality management protocols linked with accredited third-party test reports (Intertek, TUV, IFT Rosenheim).
CE marking confirms compliance with Essential Characteristics under the Construction Products Regulation (CPR No 305/2011), including reaction to fire, release of dangerous substances, resistance to wind load, water tightness, airborne sound insulation, and thermal transmittance values.
3. Structural Integration & Glazing Technologies
Glass accounts for up to 85% of an aluminum clad wood door's total surface area. To maximize thermal and structural performance, our manufacturing facility integrates automated IG (Insulated Glass) assembly lines:
- Triple-Pane Low-E Configurations: 6mm Low-E Tempered + 12Ar (90% Argon gas filled with warm-edge Technospacer) + 6mm Float + 12Ar + 6mm Low-E Tempered glass units.
- Laminated Safety Glazing: SentryGlas® (SGP) structural interlayers for hurricane-impact zones and maximum intrusion prevention.
- Self-Cleaning & Solar Control Coatings: Magnetron sputtering coatings to lower Solar Heat Gain Coefficients (SHGC down to 0.23) for hot summer / tropical climates.
Manufacturing Metrics
Export Operational Strength & Scale
Data-driven manufacturing reliability powering global architectural procurement.
20,000+
m² Production Facility
40+
Global Export Markets
0.78
Min U-Value (W/m²K)
15-25
Days Expedited Lead Time
Market Intelligence
Future Sourcing Trends for Aluminum Clad Wood Doors
Strategic foresight for architectural importers, real estate developers, and window distributors.
1. Ultra-Slim Sightlines with Structural Timber
Architectural demand is shifting toward minimal frame visual widths (down to 18mm narrow stiles) that combine floor-to-ceiling glass expanses with warm interior wood finishes, utilizing high-density laminated timber to maintain wind load stiffness.
2. Smart Sensor & Motorized Automation
Integration of concealed electric multipoint drives, smart biometrics (fingerprint/facial recognition), and motorized magnetic lift-and-slide mechanisms linked to home automation (Zigbee/KNX) is quickly becoming standard in luxury projects.
3. Decarbonization & EPD Transparency
Importers in the EU and North America increasingly mandate Environmental Product Declarations (EPD) detailing embodied carbon metrics. FSC-certified timber and low-carbon extruded aluminum (produced using hydroelectric power) offer a distinct competitive edge.
Why Partner With Us
Foshan Factory Advantage & B2B Capabilities
Unmatched supply chain integration, precision engineering, and rigorous export handling.
German CNC Machining Precision
Equipped with 5-axis German CNC cutting centers, automatic corner crimping, and glue-injection systems ensuring ±0.5mm dimensional tolerances across large-scale engineering schedules.
100% Factory Pre-Assembly & Testing
Every door and window assembly undergoes full frame layout, hardware debugging, and seal inspection on vertical rig test-beds prior to protective film application and export crating.
Sea-Worthy Export Crate Packaging
Finished door units are wrapped in 5-layer anti-scratch EPE foam, reinforced with plastic corner guards, and fully enclosed inside fumigation-free plywood crates for safe long-distance ocean transit.
Structured Execution
End-to-End Export Workflow
01
CAD Drawing Approval
Our engineering team verifies architectural elevations, glass specs, wind load calcs, and issues shop drawings within 24 hours.
02
Timber & Extrusion Finishing
Timber undergoes kiln drying, CNC shaping, and water-base painting; aluminum profiles receive custom RAL powder or PVDF coating.
03
Assembly & Glazing
Glued pin-corner crimping, EPDM gasket fitting, insulated glass unit glazing, and hardware mounting in controlled environment.
04
QC & Container Loading
Final inspection clearance, barcoding per window tag schedule, plywood crating, and direct container loading FOB Foshan/Shenzhen.
Frequently Asked Questions
Comprehensive Procurement FAQ for B2B Buyers
Technical clarity on certifications, customization, container logistics, and warranty terms.
What makes CE certification essential for importing aluminum clad wood doors into Europe? +
CE marking under EN 14351-1 demonstrates that the window and door systems comply with mandatory European Union safety, structural integrity, and energy performance directives. It ensures smooth customs clearance, satisfies municipal building inspectors, and guarantees verified performance values regarding U-factors, air infiltration, and water tightness.
How do aluminum clad wood doors compare in maintenance versus traditional solid wood doors? +
Traditional wood doors require re-staining or painting every 2 to 3 years due to weathering, solar UV degradation, and rain exposure. Aluminum clad wood doors feature an exterior armor of powder-coated or PVDF-treated aluminum that completely protects the wood core from weather elements, reducing exterior maintenance to zero while preserving natural interior wood aesthetics for decades.
What is the Minimum Order Quantity (MOQ) and production lead time for project orders? +
Our standard project MOQ starts from 50 square meters (or approx. 20-30 custom door/window units). Mixed product lines (such as sliding doors, casement windows, and tilt-and-turn units) can be consolidated within a single 20GP or 40HQ container. Lead time is typically 15 to 25 working days following final CAD shop drawing sign-off and deposit confirmation.
Do you offer OEM / ODM customization for architectural brands and developers? +
Yes. We specialize in custom die profile development, private-label branding, customized architectural hardware integration (e.g., German Roto, Siegenia, Hoppe, or custom-designed handles), surface finishing in any standard RAL color code, and specialized wood species selection (Oak, Pine, Larch, Teak, Walnut).
How is timber warping prevented during cross-ocean freight shipping? +
We exclusively use 3-ply or 4-ply engineered laminated timber sections where wood grain directions are opposingly stacked. This neutralizes internal natural stresses. Furthermore, the timber undergoes precision vacuum kiln drying to 10% ± 2% moisture content and is sealed with multi-coat waterproof primers before being packaged in desiccated, sea-worthy sealed containers.
What hardware options and warranties are included with export orders? +
We equip our aluminum clad wood doors with premium German multi-point gear locking systems rated for 200,000 operational cycles and heavy sash load capacities (up to 300kg for lift & slide panels). All structural hardware and insulated glass units carry a standard 10-year factory warranty.
Ready to Elevate Your Architectural Project?
Send your window schedule or floor plan CAD drawings today. Our senior fenestration engineers will provide technical analysis, U-value calculations, and a competitive factory-direct quotation within 24 hours.
