Engineered High-Security Windows & Doors Catalog
Factory-direct high-performance architectural systems verified for structural anti-burglary strength, soundproofing, and severe wind-load resistance.
Thermal Broken Soundproof Customized Aluminum Swing Doors for North American Builder
JUNYAO Modern Horizontal Sliding Soundproof Patio Door For Balcony Garden Villa Courtyard Entrance Insect Screen Aluminum Alloy
Multi Panel Aluminum Folding Glass Doors Seamless Sliding Bi-fold Patio Door for Modern Living
EOKO Custom Wooden Grain Front Entry Main Security Aluminum Decorous Exterior Pivot Door for America House Entrance Doors
Aluminium Bi-Fold Thermal Break Slide Fold Door Toughened Glass Anti Mosquito Mesh Anti Jam Design For Garden Deck Restaurant

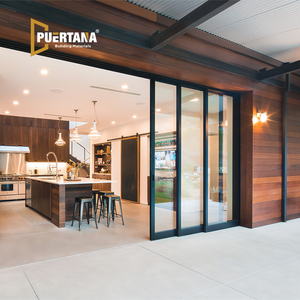

Exterior Conceal Stacking Door Sliding Patio Door Aluminium Hidden Glass Pocket Slide Doors Inside the Wall
Aluminum Bathroom Door Black Frame Frosted Glass Waterproof Anti Corrosion Dry Wet Separation Hotel Apartment OEM Custom
Custom-Made Intelligent Aluminium Alloy Turbo Roller Gate Industrial Doors for Factory Workshop Garage
Whitepaper: Engineering Specifications for Anti-Burglary Aluminium Windows
A deep technical analysis of forced entry resistance, alloy metallurgy, multi-point lock engineering, and glass security interlayers for modern global projects.
In modern high-end architectural developments, security can no longer be an afterthought added via exterior iron bars or unsightly surface grilles. As modern luxury villas, commercial complexes, and high-rise apartments transition toward expansive glass facades, the demand for China Best Aluminium Burglar Windows Supplier & Suppliers who can engineer invisible, structural anti-intrusion systems has grown exponentially. Standard window profiles often fail against targeted forced entry tools such as crowbars, heavy levers, or dynamic impact tools. True burglar-resistant fenestration relies on a holistic synergy between structural profile design, multi-chamber thermal breaks, multi-point locking gear, high-tensile security mesh, and specialized laminated safety glass.
1. Profile Alloy Metallurgy & Wall Thickness Integrity
The foundation of structural intrusion resistance is prime extruded aluminum alloy. Zenic Window & Door Technology utilizes strictly 6063-T5 virgin billet aluminum (eliminating recycled scrap impurities that introduce micro-fractures under tension). Profiles are extruded with heavy wall thicknesses ranging from 2.0 mm to 3.0 mm for critical structural framing zones. Multi-chamber interior profiles provide intrinsic rigidity, keeping the window frame square and unyielding under heavy prying loads exceeding 1,000 N.
2. Multi-Point Anti-Pry Locking Systems & Hardware Reinforcement
Traditional windows rely on single-latch handles that can easily be sheared or forced open. High-security burglar windows incorporate multi-point perimeter locking hardware engineered from 304 or 316 stainless steel. Mushrooms bolts enter heavy-duty steel keep plates anchored directly into the structural aluminum core rather than surface beadings. When locked, the sash and frame interlock across 4 to 8 distinct points along the frame perimeter, effectively neutralizing lever attacks and distributing forced loads across the entire wall assembly.
3. Laminated Impact & Security Glass Integration
To resist manual attack, standard tempered glass is replaced or augmented with multi-layer laminated safety glass. Utilizing SentryGlas (SGP) or high-grade Polyvinyl Butyral (PVB) interlayers sandwiched between toughened glass panes, the glazing remains bonded even when cracked under repeated heavy impact. This prevents intruders from creating a human-sized opening without alert-raising power equipment.
| Security Rating Level | Structural Profile Spec | Hardware Lock Points | Glass Configuration | Forced Entry Resistance Time |
|---|---|---|---|---|
| Standard Residential | 1.4mm 6063-T5 Profile | 1–2 Point Cam Lock | 5mm + 12A + 5mm Tempered | < 30 Seconds (Basic Tools) |
| Enhanced Security (RC2 / PAS24) | 2.0mm Multi-Chamber Aluminum | 4–6 Point Anti-Pry Shootbolt | 6mm Low-E + 12A + 6.38mm PVB Lam | 3 to 5 Minutes (Heavy Screwdrivers/Pliers) |
| High-Security Burglar (RC3 / Heavy Duty) | 2.5mm–3.0mm Reinforced Core | 8+ Point Stainless Steel Lock Gear | 8mm Toughened + 1.52mm SGP + 8mm Glazing | 5 to 10+ Minutes (Crowbars, Chisels, Drills) |
| Extreme Protection (Villas/Banks) | 3.0mm Aircraft-Grade Frame | Motorized Concealed Deadbolts | Triple Glazed + Bullet-Resistant Lam | Indefinite (Sustained Manual Attack Resistant) |
Core Architectural Security Innovations
Why leading global architects and project buyers specify our high-security thermal break systems.
Anti-Pry Corner Crimping
Reinforced mechanical pin-and-glue corner keys prevent frame warping under crowbar leverage, retaining structural geometry even under intense physical stress.
PA66 Polyamide Thermal Strip
High-density imported PA66GF25 polyamide thermal barriers isolate outdoor temperature extremes while preventing thermal bridging, cutting HVAC energy loss up to 40%.
Stainless Diamond Mesh (304/316)
High-tensile 0.8mm wire gauge stainless steel security screens act as both an impenetrable anti-theft barrier and an insect guard without obstructing ventilation.
Concealed Pressure Drainage
Hidden multi-stage drainage channels prevent water backup during violent windstorms while eliminating exposed exterior drainage caps that can be vandalized.
Triple-Gasket EPDM Weather Seal
Automotive-grade continuous EPDM rubber weatherstripping provides air permeability, water tightness, and sound attenuation rating up to STC 45 dB.
Custom Architectural Finishes
Available in premium AkzoNobel powder coating, fluorocarbon (PVDF) marine spray, anodized aluminum, and ultra-durable heat-transfer wood-grain finishes.
Future Procurement Trends (2025–2030): Anti-Intrusion Fenestration
Key evolutionary vectors shaping global architectural requirements for residential and commercial window procurement.
1. Smart Home IoT & Concealed Magnetic Intrusion Sensors
Future high-security windows are shifting from passive protection to intelligent active monitoring. Top global developers are now specifying frames integrated with concealed magnetic reed switches, vibration glass-break sensors, and automated motorized locking pins connected directly to smart home automation or building management systems (BMS).
2. Ultra-Narrow Sightlines Combined with RC3 Structural Security
Historically, burglar-resistant windows required heavy, bulky frames. Technological advancements in structural silicon bonding and alloy wall ribbing now allow suppliers to offer ultra-slim minimal sightline frames (down to 20mm visible width) that maintain full RC2/RC3 anti-burglary compliance.
3. Decarbonization & Low Carbon Aluminum Sourcing
In Europe and North America, ESG mandates require fenestration manufacturers to provide Environmental Product Declarations (EPDs). The procurement shift favors manufacturers utilizing hydro-powered aluminum smelting and recyclable thermal break materials to lower embodied carbon footprint without sacrificing structural tensile strength.
Frequently Asked Questions (FAQ)
Essential insights for international project procurement managers, importers, and fenestration specifiers.
What makes an aluminium window truly "burglar-proof" compared to standard windows?
A burglar-proof aluminium window integrates reinforced 6063-T5 profile walls (2.0mm+ thickness), multi-point anti-pry locking hardware anchored into internal steel keeps, stainless steel diamond security mesh, and laminated security glass (PVB/SGP). Standard windows use single-point latches and thin glass that can be easily breached in seconds.
What is your Minimum Order Quantity (MOQ) for custom security window orders?
Our minimum order quantity starts from 50 units per project. Importers and contractors can mix different window and door types (casement, sliding, tilt-and-turn, bi-fold) within a single container order to meet MOQ requirements.
What international testing standards and certifications do your windows satisfy?
Our window and door product lines are designed and tested according to regional standards, including NFRC and AAMA for North America, CE marking for Europe, AS2047 for Australia, and ISO 9001 quality management systems. Test reports can be supplied for project submittals.
What lead times can overseas buyers expect from order placement to shipment?
Standard production lead time ranges from 15 to 25 days after final approval of CAD shop drawings and deposit confirmation. Shipping is handled FOB Foshan or Shenzhen port with full export documentation provided.
Can your factory support OEM / ODM custom profiles and private labeling?
Yes, over 60% of our production consists of OEM and ODM projects. We support custom profile die development, specialized RAL powder coating, wood-grain thermal transfers, custom hardware branding, and private-label packaging for distributors.
How do thermal break profiles contribute to structural security and energy efficiency?
Polyamide (PA66GF25) thermal break strips separate inner and outer aluminum extrusion chambers. This structural bridge stops conductive heat transfer—achieving U-values down to 1.1 W/m²K—while adding internal structural baffling that makes frame deformation during forced entry attempts significantly harder.
Ready to Secure Your Architectural Project?
Submit your project window schedules, CAD elevations, or custom specification requirements. Our senior engineering team will respond with structural recommendations, U-value calculations, and competitive factory-direct pricing within 24 hours.
