Featured Architectural Aluminum Systems
Factory-direct thermal break windows, heavy-duty bifold accordion doors, and custom entrance solutions tested for extreme wind loads and low U-value thermal efficiency.
Modern Aluminum Alloy Tempered Glass Waterproof Sliding Bifold Accordion Folding Door
Hidden Hinge Design Thermal Break Aluminum Accordion Folding Doors Exterior Bifold Glass Door

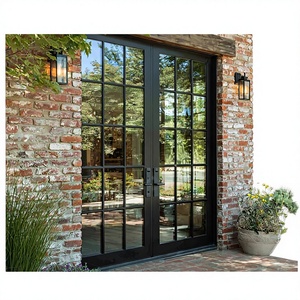

Sunnysky French Style Exterior Entry Double Tempered Glass Waterproof Modern Retro Black Aluminum Swing Door
Replacement French Design Casement Windows Thermal Break Modern Glass Windows Aluminum Clad Wood Windows
Modern Luxury Villa Hotel Main Entrance Pivot Door Exterior Security Anti-theft Front Entry Door
Fuson Pitched Aluminium Roof Windows Aluminum Skylight Awning Casement Metal Roof Swing Window
XIYATECH Modern Commercial Storefront Custom Customized Aluminum Alloy Soundproof Glass Automatic Swing Doors
Glass Cabinet Door Air Smart 4Mm Tempered Glass Aluminum Frame Picture Windows For Office & Furniture
Why Global Developers Partner with ZENIC Window & Door Technology
Headquartered in Foshan, Guangdong—the epicenter of China's aluminum profile and hardware innovation—ZENIC delivers high-performance fenestration solutions backed by ISO 9001 certified manufacturing rigor.
20,000 m² Advanced Production Base
Equipped with precision CNC cutting centers, automated 45° corner crimping machines, and computerized glass sealing lines to guarantee strict sub-millimeter tolerances on large-span bifold structures.
Virgin 6063-T5 Structural Profile
We strictly mandate primary billet aluminum with structural wall thicknesses from 2.0mm to 3.0mm, avoiding scrap metal contamination to deliver tensile strength ≥ 160 MPa and superior wind resistance.
Thermal Efficiency down to U=1.1 W/m²K
Integrated Polyamide PA66-GF25 thermal breaks combined with double or triple Low-E insulated glass units (IGU) drastically cut building HVAC energy loads in extreme cold or tropical climates.
200,000-Cycle Hardware Longevity
Fitted with heavy-duty top-hung stainless roller carriages and multi-point concealed gear locks designed to support sash weights up to 300kg with effortless push-pull sliding dynamics.
Certified for 40+ Export Markets
Tested and audited against global benchmarks including AS2047 (Australia), NFRC / AAMA (North America), CE marking (Europe), and CSA, ensuring smooth building inspection sign-offs.
B2B OEM & ODM Project Tailoring
From CAD drawing verification to custom RAL powder coatings, anodizing, fluorocarbon (PVDF) finishes, and private branding label solutions for contractors, distributors, and developers.
Engineering Architecture of China Aluminium Bifold Windows & Doors
In modern commercial and high-end residential architecture, the threshold between indoor living space and outdoor environment is increasingly defined by large-span glass envelope systems. As a dominant supplier and exporter from Foshan, China, ZENIC Window & Door Technology Co., Ltd. engineered its multi-fold accordion series to resolve the structural trade-off between massive clear opening ratios and stringent thermal insulation requirements.
Information Gain: Why Profile Wall Thickness & Alloy Grade Matter in Bifold Systems
Unlike standard casement windows that operate under simple localized hinge loads, heavy-duty aluminium bifold windows experience continuous cantilever forces, shear forces, and wind pressures across multiple hinged sashes. Using primary 6063-T5 aluminum alloy with a structural wall thickness of 2.0mm to 3.0mm eliminates system sag over time, maintaining air leakage resistance under negative wind loads exceeding 5,000 Pa.
1. Thermal Break Barrier & Polyamide (PA66-GF25) Integration
Aluminum is naturally a highly conductive metal ($k \approx 200 \text{ W/m}\cdot\text{K}$). To meet modern zero-energy building mandates, our bifold window profiles utilize dual multi-chamber cavity designs connected by 24mm to 34mm wide Polyamide PA66 reinforced with 25% glass fiber (PA66-GF25). This barrier lowers overall profile thermal conductivity ($k \le 0.3 \text{ W/m}\cdot\text{K}$), preventing thermal bridging, mitigating interior glass condensation, and maintaining frame stability across extreme winter-summer delta temperatures.
2. Triple EPDM Gasket System & Equal Pressure Drainage
A frequent failure mode in low-tier bifold doors is water infiltration at corner hinges during torrential rainstorms. ZENIC solves this through a three-stage continuous EPDM sealing gasket matrix:
- Exterior Storm Barrier: High-density EPDM wiper seals stop wind-driven rain from penetrating the sash-frame perimeter.
- Internal Decompression Cavity: Concealed pressure-equalized drainage slots channel any residual water down stainless steel drainage gutters, avoiding water pooling within profile chambers.
- Interior Acoustic Seal: Soft co-extruded EPDM gaskets compress tightly when sashes lock into place, providing airborne sound attenuation rated up to STC 42 dB.
3. Stainless Steel Bearing Carriages & Structural Hardware Load Distribution
The operational smoothness of an aluminum bifold door relies entirely on its trolley system. ZENIC bifold systems utilize top-hung or bottom-load guide tracks milled from heavy-duty extruded aluminum, paired with 8-wheel stainless steel (SUS304) roller assemblies. Each roller carriage is tested under dynamic stress loads to support up to 300 kg per panel without track deformation, allowing architects to specify panel heights up to 3,500 mm and panel widths up to 1,200 mm.
System Performance Comparison Matrix
| Performance Indicator | ZENIC Heavy-Duty Bifold | Standard Sliding Door | Traditional Casement | Architectural Impact |
|---|---|---|---|---|
| Maximum Clear Opening | Up to 95% | 50% - 66% | 40% - 50% | Creates seamless indoor-outdoor transition for commercial patios & villas. |
| Thermal U-Value Range | 1.1 - 1.8 W/m²K | 1.6 - 2.4 W/m²K | 1.0 - 1.6 W/m²K | Complies with strict EU Energy Performance of Buildings Directive (EPBD). |
| Wind Load Resistance | Class 9 (Up to 5.0 kPa) | Class 7 (3.5 kPa) | Class 9 (5.0 kPa) | Engineered for high-rise coastal developments subjected to typhoon conditions. |
| Water Tightness Rating | 600 Pa (Class 9A) | 300 Pa (Class 6A) | 700 Pa (Class E900) | Prevents water ingress during heavy wind-driven rainstorm events. |
| Hardware Cycle Life | 200,000 Operations | 100,000 Operations | 150,000 Operations | Drastically lowers long-term B2B facility maintenance and replacement costs. |
Future Procurement Trends in Aluminium Bifold Fenestration
As global building regulations shift toward decarbonization, micro-slim aesthetics, and smart automation, overseas buyers must align with forward-thinking manufacturing capabilities.
1. Ultra-Slim Interlock Sightlines
Architects are replacing heavy 100mm frame profiles with minimal interlock sightlines down to 28mm-45mm. ZENIC’s structural hidden hinge bifold doors maximize daylight penetration while maintaining structural inertia ($I_x$).
2. Carbon-Neutral & Recycled Profile Mandates
European and North American specifiers increasingly require Environmental Product Declarations (EPD). Sourcing from suppliers equipped with low-carbon extrusion processes reduces scope 3 emissions for LEED projects.
3. Motorized Smart Building Integration
The next decade will see rapid adoption of motorized bifold windows linked to automated building management systems (BMS). Integrated sensory rain/wind sensors trigger motorized closing within seconds.
4. Flush Threshold & Barrier-Free Living
Universal access design standards require zero-step threshold tracks. Our flush stainless drain tracks integrate sub-floor drainage channels, achieving ADA compliance without sacrificing water resistance.
5. Advanced Surface Coatings for Harsh Zones
Projects in Gulf coastal zones or tropical islands require Qualicoat Class 2 or PVDF fluorocarbon coatings capable of withstanding 3,000+ hours of neutral salt spray (AAMA 2605 testing) without chalking.
6. High Impact & Hurricane-Resistant Glass
Coastal developments across the US, Caribbean, and Australia require Miami-Dade or AS2047 hurricane impact testing. Laminated SentryGlas® interlayers keep bifold units intact during flying debris impacts.
Frequently Asked Questions for B2B Importers & Contractors
Essential technical and commercial answers directly from ZENIC’s export engineering department.
Request Engineering Shop Drawings & Factory Price Quote
Send your project window schedules, elevation blueprints, or custom profile requirements to ZENIC's technical team. Receive a comprehensive line-item quotation within 24 hours.
