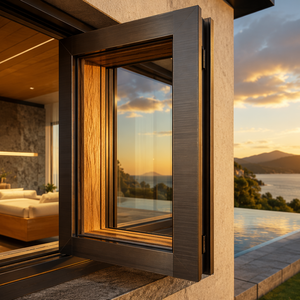

Aluminum Clad Wood Exterior Window with Handcrafted Timber Finish
Wood-Look Aluminum Insulated Sandwich Panel Security System
Modern Black Profile Heavy-Duty Aluminum Front Entry Pivot Door
Motorized Vertical Electric Lift Aluminum Sash & Cottage Window
Hurricane Impact Thermal Break Double Glazed Tilt & Turn Window
Architectural Aluminum Automatic Shutter & Roll Up System
1. Architectural Engineering & Industry Overview: Modern Cottage Pane Windows
Cottage pane windows—historically characterized by smaller individual glass panes partitioned by timber or steel glazing bars (muntins)—have undergone a monumental engineering shift. Modern architectural demands prioritize low-emissivity (Low-E) thermal efficiency, acoustic insulation, structural wind resistance, and zero-maintenance durability. As a leading manufacturer and exporter based in Foshan, China, our production methodology integrates high-tensile 6063-T5 virgin aluminum alloys with multi-chamber polyamide (PA66) thermal break systems to recreate timeless aesthetic grid patterns without sacrificing thermodynamic performance.
For international buyers, property developers, and commercial window distributors, specifying aluminum cottage pane windows from China requires a deep understanding of joinery techniques, simulated divided lites (SDL) versus true divided lites (TDL), powder coating film thickness, and export packaging compliance. This white paper serves as an authoritative procurement manual for sourcing certified, high-performance cottage pane windows and system fenestration directly from China's premier manufacturing ecosystem.
Information Gain Key Takeaway: Traditional steel and timber cottage pane windows suffer from rapid thermal bridging, paint peeling, and high maintenance costs. Modern extruded aluminum cottage pane windows manufactured with dual-side internal/external applied glazing bars and internal spacer bars achieve an architectural aesthetic while satisfying strict energy codes such as NFRC, CE, and AS2047.
Technical Anatomy of Premium Aluminum Cottage Profiles
Our aluminum cottage pane windows are constructed with structural wall thicknesses ranging from 1.4 mm to 2.0 mm, fulfilling international structural load requirements. Unlike basic window frames, cottage pane systems must accommodate grid intersections cleanly while maintaining air-tightness and water-tightness under severe weather conditions.
6063-T5 Aluminum Extrusion
Utilizing 100% prime aluminum billet without recycled contamination ensures tensile strength above 160 MPa, creating rigid frames that resist deflection under high atmospheric pressures.
Polyamide (PA66 GF25) Strips
Reinforced 25% glass-fiber polyamide thermal break strips break the energy pathway between interior and exterior aluminum profiles, stopping condensation and thermal loss.
EPDM Triple Gasket Sealant
Continuous synthetic rubber weather-stripping along sashes and frames ensures exceptional acoustic isolation (up to 42 dB) and complete water barrier performance.
2. Technical Specifications & Glazing Bar Engineering
When selecting aluminum cottage pane windows for commercial imports or architectural project specification, buyers must evaluate glazing bar joinery systems. Sourcing from experienced Chinese manufacturers gives access to three distinct glazing grid configurations, each offering unique trade-offs between labor cost, historical accuracy, and thermodynamic performance:
- Simulated Divided Lites (SDL) with Internal Duplex Bars: The industry standard for high-end export. Premium aluminum muntin bars are precision-bonded onto both the exterior and interior glass faces using 3M structural adhesive tape, while an aluminum spacer grid is sealed inside the double/triple insulated glass unit (IGU). This creates the visual depth of authentic individual panes with the thermal performance of a single continuous double-glazed unit.
- Internal Decorative Grids (GBG - Grids Between Glass): Aluminum muntin bars are mounted entirely within the sealed air cavity of the double-glazed unit. This provides a smooth glass surface on both sides, rendering cleaning effortless while maintaining a classic cottage look. Ideal for high-density multi-family residential developments.
- True Divided Lites (TDL): Sashes are constructed with individual aluminum structural mullions holding separate small glass units. While offering authentic historical joinery, TDL increases frame weight and joint count, requiring automated corner crimping and structural silicone sealing to prevent air infiltration.
Engineered Performance Metrics Matrix
| Performance Parameter | Standard Commercial Spec | High-Efficiency Thermal Spec | Extreme Weather / Hurricane Spec |
|---|---|---|---|
| Frame Depth | 65 mm - 75 mm | 90 mm - 110 mm | 120 mm - 150 mm |
| Thermal Transmittance (U-Value) | 2.2 – 1.8 W/m²K | 1.4 – 1.1 W/m²K | 1.2 – 0.9 W/m²K (Triple Low-E) |
| Glazing Configuration | 5mm+12Ar+5mm Toughened | 6mm+16Ar+6mm Low-E Warm Edge | 6mm Laminated Impact + 12Ar + 6mm Low-E |
| Wind Pressure Resistance | Class 4 (2500 Pa) | Class 6 (3600 Pa) | ASTM E1886 / E1996 Impact Rated |
| Surface Finish Standard | Qualicoat Class 1 Powder Coating | Qualicoat Class 2 / PVDF 3-Coat | 25 Micron Anodized Coastal Finish |
| Hardware Cycle Test | 50,000 Open/Close Cycles | 100,000 Open/Close Cycles | 200,000 Open/Close Cycles (Multi-Point) |
Require Custom CAD Drawings or BIM Models for Your Project?
Our engineering team provides project-specific structural calculations, wind load analyses, and custom window schedules within 24 hours.
3. Global Procurement & Future Market Trends (2025–2030)
The global market for aluminum windows and doors is undergoing rapid structural transformations driven by strict carbon neutrality targets, rising labor costs on job sites, and evolving architectural preferences. Key procurement trends shaping how overseas distributors and builders source cottage pane windows from China include:
A. Shift Toward Prefabricated Knock-Down (KD) & Unitized Shipping
As international container freight prices fluctuate and destination labor rates climb, global buyers are transitioning from fully assembled oversized windows to pre-engineered Knock-Down (KD) frame assemblies or factory-preglazed unitized sashes. Chinese manufacturers are incorporating color-coded hardware positioning, pre-drilled installation flanges, and snap-in exterior trim profiles that cut site installation labor by up to 40%.
B. Ultra-Slim Sightline Thermal Systems
Minimalist luxury architecture demands maximum glass ratios without abandoning traditional cottage pane aesthetics. Future cottage pane window designs feature ultra-narrow sash sightlines (as thin as 18mm to 25mm visible profile) combined with high-density polyurethane (PU) foam-injected profile cores. This delivers maximal natural light penetration alongside passive house energy performance levels.
C. Carbon Footprint & Environmental Product Declarations (EPD)
European and North American green building regulations (such as LEED v4.1 and BREEAM) increasingly mandate Environmental Product Declarations (EPDs) covering raw material extraction through final shipment. Top-tier Chinese manufacturers are adopting low-carbon hydropower-melted aluminum billets and solvent-free powder coatings to fulfill strict Scope 1 and Scope 2 carbon compliance metrics for global importers.
D. Smart Glass & Integrated Dynamic Shading
The integration of motorized smart tinting glass (electrochromic IGU) and smart sensors into aluminum cottage window systems allows automated light and heat gain management. Integrated motorized blind sashes, lift-and-slide electric actuators, and micro-ventilation trickle vents are becoming standard upgrades in luxury residential tenders worldwide.
4. Technology Evolution in Chinese Fenestration Manufacturing
China's manufacturing sector in Foshan, Guangdong, has evolved beyond simple extrusion assembly to become a hub of automated precision engineering. Implementing advanced CNC machinery, robotic corner crimping, and automated silicone glazing lines guarantees tight quality tolerances across volume export shipments.
5-Axis CNC Precision Machining
Milling, hardware lock pocket routing, and drainage slot cutting occur on 5-axis CNC centers in a single setup, ensuring dimensional tolerances within ±0.2mm.
Pin-and-Glue Corner Crimping
Frame corners feature heavy-duty cast aluminum corner cleats injected with two-component polyurethane corner glue, yielding structural joints that resist cracking and water intrusion.
Fluorocarbon (PVDF) Surface Treatment
Multi-coat PVDF and AkzoNobel powder coating lines deliver exceptional resistance to salt spray, chalking, and UV fading, critical for coastal installations.
Factory Testing Protocols: Every production batch undergoes rigorous in-house testing: Air Permeability (ASTM E283), Water Penetration Resistance (ASTM E331), Structural Performance (ASTM E330), and Corner Joint Strength destructive testing before export crate packing.
5. ZENIC Enterprise Advantages: Why Partner With Us
Operating from our 20,000 m² state-of-the-art production base in Foshan, China, Zenic Window & Door Technology Co., Ltd. is a specialized manufacturer of thermal break aluminum window systems, sliding doors, and architectural shading solutions. Our integrated business model combines system design, extrusion processing, custom glazing bar assembly, and export project coordination under one roof.
- Foshan Supply Chain Synergies: Located at the epicenter of China's aluminum industry, we source premium 6063-T5 billets, high-grade hardware (Siegenia, Hoppe, Kinglong), and certified glass units with unmatched lead times and cost efficiencies.
- Strict QC Compliance & Tracking: Every order is governed by ISO 9001 certified quality controls. Individual window units are tagged with unique project numbers matching site architectural elevation codes, streamlining on-site identification.
- Custom OEM / ODM Capabilities: We collaborate with overseas distributors and brand owners to design custom profile dies, private label packaging, bespoke color ranges, and hardware branding.
- Fumigation-Free Sea-Worthy Packaging: All orders are protected using protective film, high-density EPE foam corner wrap, and heavy-duty fully enclosed plywood cases designed for forklift unloading.
Direct Factory Procurement & Engineering Support
Partner with China's leading aluminum cottage window export manufacturer. Talk directly with our structural engineers to get a complete price estimate and technical proposal.
6. Comprehensive B2B Procurement FAQ
Here are clear answers to common questions asked by overseas buyers, importers, and project contractors when procuring aluminum cottage pane windows from China:
What is your Minimum Order Quantity (MOQ) for custom cottage pane windows?
What lead time can we expect for custom aluminum window shipments?
How do your aluminum cottage pane windows handle severe wind loads and coastal rain?
What is the difference between SDL (Simulated Divided Lites) and GBG (Grids Between Glass)?
Do your window products carry international certifications for import compliance?
What trade terms and payment methods do you support?
Ready to Source High-Performance Aluminum Cottage Pane Windows?
Submit your window schedules, architectural elevations, or project specifications. Our engineering team will review your drawings and provide technical recommendations and a competitive price quotation within 24 hours.
