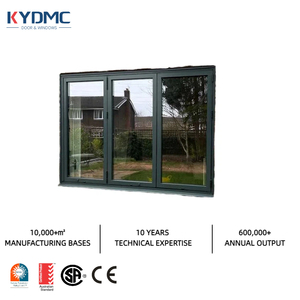

Low E Double Glass Aluminium Black Frame Bifold Windows Soundproof NFRC

Low E Double Glass Aluminium Black Frame Bifold Windows Soundproof NFRC Modern Exterior Garden American bar Bifold Window

Inquire Now

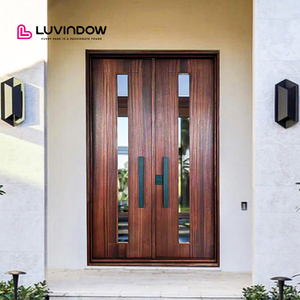

Luvindow Custom USA Villa Modern Design Exterior Solid Wood Main Entry French Door Pivot Aluminum Entry Doors

Luvindow Custom USA Villa Modern Design Exterior Solid Wood Main Entry French Door Pivot Aluminum Entry Doors for House

Inquire Now
20,000m²
Foshan Factory Base
40+
Global Export Markets
1.1W/m²K
Lowest Thermal U-Value
200,000
Hardware Cycle Testing

1. Executive Summary & Technical Anatomy of Aluminum Insert Windows

In modern architectural engineering, aluminum insert windows (also designated as subframe-integrated insert fenestration systems) represent a pivotal evolutionary step in envelope design. Unlike legacy nail-fin or block-frame installations that directly anchor the outer window casing into raw masonry or curtain wall transoms, insert window systems utilize a secondary pre-installed structural sub-extrusion. This precision-engineered subframe acts as a thermal, acoustic, and mechanical buffer interface between the main building structure and the operable window assembly.

From a manufacturing standpoint in Foshan, China—the epicenter of high-precision aluminum extrusion—the technical superiority of insert windows relies on three fundamental engineering principles:

A. Polyamide PA66 Thermal Isolation Barrier (Decoupled Frame Tech)

Aluminum inherently possesses high thermal conductivity (~200 W/m·K). To overcome energy dissipation, top China insert window manufacturers utilize multi-chambered PA66 GF25 (25% fiberglass reinforced polyamide) thermal break strips. Insert systems allow for seamless integration of 24mm to 34mm thermal struts, creating an impenetrable barrier against convective and conductive heat transfer. This achieves overall frame assembly U-factors as low as 1.1 W/m²K (0.19 BTU/h·ft²·°F), easily satisfying stringent US Energy Star Version 7.0 and European Passive House low-energy building criteria.

B. Equalized Pressure Concealed Drainage & Triple-Gasket Sealing

Insert subframes engineered by Zenic Window & Door Technology utilize dynamic pressure-equalization chambers. By incorporating continuous EPDM (Ethylene Propylene Diene Monomer) co-extruded gaskets across three seal lines (outer rain screen, middle air seal, inner acoustic seal), water penetration resistance is rated up to 700 Pa (ASTM E331 compliance). Rainwater entering the outer rebate is directed into hidden drainage slots without reliance on unsightly face-applied weeping caps.

C. Dimensional Tolerance Management in High-Rise & Modular Retrofits

In commercial retrofits or high-rise building expansions, structural deflection and irregular rough openings present major installation risks. Subframe insert windows solve this by allowing the outer subframe to absorb building movement, structural settling, and expansion/contraction up to ±15mm without placing structural stress on the inner double/triple-glazed insulated glass units (IGUs).

Virgin 6063-T5 Profile Billet

We strictly utilize primary, non-recycled 6063-T5 aluminum alloy extrusions with nominal wall thicknesses of 2.0mm to 3.0mm, delivering up to 1,000 N structural wind load capacity (ASTM E330).

Multi-Point German Locks

Fitted with premium SIEGENIA or HOPO multi-point locking gear, featuring anti-pry mushroom cams rated for over 200,000 duty cycles without mechanical play or frame deformation.

Argon-Filled Low-E IGUs

Equipped with dual or triple-pane tempered safety glass, warm-edge silicone spacers, and 95% argon gas fill to minimize Solar Heat Gain Coefficient (SHGC ≤ 0.22).

2. Future Procurement Trends in the Global Aluminum Window Industry (2025–2030)

As international energy codes tighten and developer margins face pressure from labor costs, the procurement paradigm for fenestration products imported from China is shifting rapidly. Architectural specifiers, real estate developers, and wholesale importers must align their supply chains with four major industrial trends:

Trend 1: Shift Toward Modular Off-Site Subframe Assembly (DFMA)

Design for Manufacture and Assembly (DFMA) is revolutionizing site construction in North America, Europe, and Australia. Traditional window installation requires multi-stage exterior scaffolding and field-applied caulking. The future lies in factory-preassembled subframes attached to curtain wall panels or precast concrete facades during off-site assembly. In-factory insert window integration cuts site installation labor by up to 65%, eliminates waterproofing rework, and drastically improves project commissioning timelines.

Trend 2: Ultra-Narrow Sightlines with Concealed Motorized Actuation

Architectural design language heavily favors ultra-minimalist frames with visible frame profiles under 25mm. Insert windows are adapting to hide operable sashes entirely within the outer subframe pocket. Furthermore, low-voltage (24V DC) concealed linear actuators integrated into the frame header enable automated natural ventilation integrated into Building Management Systems (BMS), controlled via IoT protocols.

Trend 3: Carbon Footprint Tracking & Sustainable Recyclable Alloys

With the implementation of the EU Carbon Border Adjustment Mechanism (CBAM) and global ESG reporting requirements, window manufacturers in China are adopting green energy hydro-powered aluminum billets and low-VOC powder coating lines (such as AkzoNobel and PPG fluorocarbon PVDF coatings). Importers can now request comprehensive Environmental Product Declarations (EPD) to verify embodied carbon metrics per square meter of fenestration.

Trend 4: Smart Electrochromic & Vacuum Insulated Glass (VIG) Integration

Inserting thin-profile Vacuum Insulated Glass (VIG)—which achieves U-values under 0.6 W/m²K within a total glass thickness of under 10mm—into slim thermal break insert profiles represents the next generation of fenestration technology. This technology eliminates heavy triple-glazed units while offering unmatched acoustic isolation (STC ≥ 45 dB).

Engineering Matrix

System Performance Comparison

Performance Index Standard Commercial Window ZENIC Thermal Break Insert System B2B Engineering Benefit
Structural Profile Alloy Recycled / Standard 6063-T5 (1.4mm) Virgin 6063-T5 Heavy-Duty (2.0mm–3.0mm) Prevents frame warping, supporting large-span architectural glass.
Thermal U-Factor 2.2 – 2.8 W/m²K 1.1 – 1.4 W/m²K (Passive House standard) Reduces building HVAC power consumption by up to 35%.
Water Tightness Rating 300 Pa - 450 Pa 700 Pa (ASTM E331 / EN 12208 Class 9A) Zero water penetration under extreme storm conditions.
Acoustic Attenuation (STC) 28 dB – 32 dB 38 dB – 45 dB (With Acoustic PVB Laminate) Ideal for high-density urban residential & hotel towers.
Hardware Life Cycle 20,000 – 50,000 cycles 200,000 Tested Cycles (10-Year Warranty) Drastically lowers long-term property maintenance calls.
Why Source From Foshan, China

Zenic Window & Door Industrial Manufacturing Excellence

Located in Foshan—China's world-leading hub for architectural aluminum extrusion—Zenic operates an integrated 20,000 m² smart manufacturing base engineered exclusively for export-grade fenestration systems.

CNC Automated Precision Milling

Our factory utilizes 5-axis Elumatec CNC machining centers to ensure bolt-hole and hardware slot tolerances within ±0.1mm, eliminating site alignment issues during assembly.

Pin-and-Glue Corner Crimping

Every mitered frame corner is hydraulically crimped with cast aluminum corner keys and injected with two-component structural epoxy resin for extreme structural rigidity and zero water seepage.

Export Sea-Worthy Crating

All glass units and aluminum frames are individually wrapped with protective PE film, EPE foam edge protectors, and enclosed in ISPM-15 compliant fumigation-free plywood crates for safe ocean transit.

Completed villa project fitted with ZENIC aluminum insert windows
Modern commercial facade window system installation
Luxury seaside residence featuring aluminum sliding doors and windows
Procurement Intelligence

Frequently Asked Questions (FAQ) for Importers & Contractors

Get direct engineering answers regarding custom profile tooling, ordering workflows, technical specifications, and export logistics.

Q: What is the Minimum Order Quantity (MOQ) for custom aluminum insert windows?
Our standard minimum order quantity starts at 50 square meters (or approximately 30-50 units depending on size) per project. We accommodate mixed window types (casement, tilt & turn, sliding subframes) within a single container order to optimize freight costs for project developers.
Q: What is the typical factory production lead time from CAD approval to loading?
Standard manufacturing lead times are 15 to 25 calendar days following shop drawing sign-off and deposit receipt. Custom extrusion dies or custom RAL powder coat colors add approximately 7-10 days to the initial production schedule.
Q: Can ZENIC engineer custom subframes for specific wall profiles (e.g., ICF, Timber Frame, Steel Stud)?
Yes. Our engineering department specializes in OEM/ODM design. We supply custom insert subframe adapters tailored specifically to Insulated Concrete Forms (ICF), structural insulated panels (SIPs), light-gauge steel framing, or traditional masonry cavity walls.
Q: What international fenestration and testing standards do your windows comply with?
Our core series are tested and verified in accordance with major international testing standard protocols including NFRC, CE Mark (EN 14351-1), AS2047 (Australia), CSA (Canada), AAMA/WDMA, and ISO 9001 quality management systems. Full test reports are provided upon project submittal requests.
Q: How do insert subframes protect against thermal bridging in harsh northern climates?
The subframe creates a continuous air chamber and thermal break zone between the cold outer structural opening and the interior environment. Combined with polyamide PA66 thermal struts in both the inner sash and outer subframe, interior frame condensation is completely prevented even when outdoor temperatures drop to -30°C.
Q: What surface finishes are available for high-corrosion coastal environments?
For coastal architectural builds (within 1 km of ocean shorelines), we provide Qualicoat Class 2 / Class 3 fluorocarbon PVDF powder coating (2-coat or 3-coat system) or 25-micron anodic oxidation finishes. These treatments offer extreme resistance against salt spray corrosion exceeding 3,000 hours in ASTM B117 salt fog testing.
Q: Does ZENIC provide CAD elevation reviews and structural wind-load calculation services?
Yes. Every inquiry is reviewed by our Senior Structural Fenestration Engineers. We provide 2D CAD shop drawings, 3D BIM Revit models, and structural calculation reports assessing moment of inertia ($Ix$) for mullions under local design wind pressure requirements.

Partner with China's Premier Aluminium Insert Window Manufacturer

Submit your project window schedule, architectural drawings, or RFQ specifications today. Our engineering sales team will respond with structural calculations, shop drawings, and competitive direct factory pricing within 24 hours.
