Featured Aluminium Open & Sliding Window Systems
Tested and certified under NFRC, AS2047, and CE standards for high-end residential, villa, and commercial project procurement.
ZEKIN American Style Aluminum Outward Opening Awning Window with Double Glass NFRC AS2047 Hurricane Impact Swing Window
YY Facades As2047 Australian Windows and Doors Stacker Doors Australian Standard 3 Panel Glass Aluminum Sliding Doors
OEM ODM Manufacturer's Modern Double Glazed Security Aluminum Swing Windows & Doors Windproof Feature For Home/Apartment Use

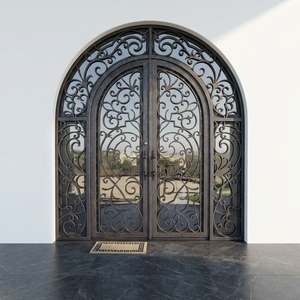

Arch Top Modern Entry French Main Wrought Iron Door Designs Double Door With Sidelights For Villa
Thermal Break Aluminum Window Energy Efficient Slimline Frame Double Glazed Window OEM RAL Color Customized Side Sliding Window
Fuson Oem Hurricane Windows Sound Poof Aluminum Casement Window Double Toughened Glass Aluminum Windows
Custom Size Aluminum Frame Folding Retractable Screen Door And Window Low Track Sliding Insect Screen Mesh

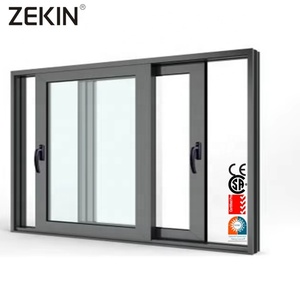

High Quality Mosquito Aluminum Sliding Window With Screen NFRC AS2047 Certification Double Glass Aluminum Window
Engineering Blueprint: Sourcing High-Performance Aluminium Open Windows from China
An authoritative technical analysis of profile metallurgy, thermal insulation mechanics, structural load performance, and global compliance standards for enterprise buyers.
1. The Evolution of Chinese Aluminium Open Window Manufacturing & Global Supply Chain Dominance
Over the past two decades, China—specifically the Foshan industrial cluster in Guangdong province—has evolved from a mass producer of standard architectural aluminium profiles into the world's leading hub for precision-engineered, high-performance fenestration systems. Aluminium open windows, comprising outward casements, tilt-and-turn configurations, top-hung awning designs, and smart lift-and-slide systems, represent the pinnacle of modern architectural enclosure engineering.
For global architects, commercial developers, and high-volume fenestration distributors, sourcing directly from top-tier Chinese manufacturers yields a structural Information Gain advantage: the integration of advanced European multi-chamber thermal break technology with cost-efficient, high-precision automated manufacturing. Leading Chinese OEM/ODM facilities operate with fully integrated production ecosystems—spanning primary alloy billet casting, precision extrusion, automated anodizing, powder coating, CNC corner crimping, double/triple insulated glass unit (IGU) assembly, and rigorous pressure-chamber quality testing.
Choosing a qualified supplier requires looking beyond basic price-per-square-meter calculations. Structural engineering factors—such as alloy mechanical properties, polyamide thermal strip density, EPDM gasket vulcanization quality, hidden drainage hydro-mechanics, and regional code accreditations (such as North American NFRC/AAMA, Australian AS2047/AS1288, and European CE standards)—determine long-term performance.
2. Structural Metallurgy & Thermal Insulation Breakdown
The structural integrity of an aluminium open window starts with the chemical composition and heat treatment of the raw profile. Premier Chinese factories utilize prime virgin 6063-T5 or 6063-T6 architectural aluminium alloys, strictly avoiding recycled scrap metals that compromise tensile strength and lead to surface pitting under anodized finishes.
- Architectural Profile Wall Thickness: Heavy-duty open window systems engineered for commercial high-rises or coastal hurricane zones utilize primary profile wall thicknesses ranging from 1.8mm to 2.2mm, far exceeding minimal residential codes.
- Polyamide Thermal Barrier Technology: To stop thermal bridging, non-conductive Polyamide (PA66-GF25 reinforced with 25% glass fiber) thermal break strips are mechanically crimped between inner and outer extruded aluminium chambers. This creates a structural barrier against heat transfer, lowering total frame U-factors to as low as 1.1 W/m²K.
- EPDM Multi-Channel Sealing Systems: Standard PVC weather-stripping degrades rapidly under solar UV exposure. Enterprise-grade open windows incorporate three-tier continuous EPDM (Ethylene Propylene Diene Monomer) gasket seals with vulcanized molded corner joints, guaranteeing airtight seal integrity over decades.
- Pressure-Equalized Hidden Drainage: Outward opening casements and awning windows utilize concealed pressure-equalized weep holes equipped with anti-backflow baffles. This engineering design prevents rainwater ingress during extreme wind-driven storm conditions.
| Window System Type | Frame Depth Range | Thermal Transmittance (U-Value) | Acoustic Insulation (Rw/STC) | Design Wind Load Resistance | Primary Regional Compliance |
|---|---|---|---|---|---|
| Thermal Break Casement (Outward) | 65mm – 90mm | 1.1 – 1.4 W/m²K | 38 dB – 45 dB | Up to 5,000 Pa (HVHZ Rated) | NFRC (USA), AS2047 (AU), CE (EU) |
| European Tilt & Turn System | 75mm – 120mm | 0.9 – 1.2 W/m²K | 40 dB – 48 dB | Up to 4,500 Pa | CE / EN 14351-1, ISO 9001 |
| Heavy-Duty Awning / Swing Window | 60mm – 85mm | 1.3 – 1.6 W/m²K | 35 dB – 42 dB | Up to 4,000 Pa | AS2047, CSA (Canada) |
| Slimline Panoramic Sliding / Open Wall | 110mm – 150mm | 1.2 – 1.5 W/m²K | 36 dB – 43 dB | Up to 3,800 Pa | AAMA / WDMA, AS1288 |
Future Sourcing & Technology Trends in Aluminium Fenestration (2025–2030)
Key industry shifts that purchasing directors, estate developers, and architectural specifiers must leverage to maintain project compliance and market competitiveness.
Vacuum Insulated Glass (VIG) & Triple-Glazed Low-E Assemblies
Global energy regulations, such as Europe's EPBD directives and North America's upgraded ENERGY STAR v7.0 mandates, are forcing a shift away from standard double glazing. Over the next five years, top Chinese open window factories will expand production of Vacuum Insulated Glass (VIG) units. VIG delivers thermal insulation performance equivalent to solid masonry walls (U-values below 0.6 W/m²K) inside ultra-thin 10mm profiles, revolutionizing lightweight residential and high-rise construction.
Ultra-Slim Sightlines with Concealed Multi-Point Hardware
Architectural aesthetics increasingly demand minimalist, flush-mounted glass facades. The market is shifting rapidly toward hidden-hinge systems and micro-frame sightlines (as slim as 18mm visible face width). Premium Chinese manufacturers are pairing structural aluminium profiles with high-capacity concealed multi-point locking hardware (from global leaders like Siegenia, Hoppe, Roto, and Kinglong), guaranteeing high anti-burglary security (RC2/RC3 rated) without sacrificing sleek design.
Motorized Actuation & Automated Building Management (BMS) Integration
Smart building automation is transitioning from luxury add-on to core engineering requirement. Modern open windows feature integrated chain actuators, automated weather sensors (wind, rain, temperature), and smart home mesh connectivity (Zigbee/Matter). Future-ready factories now build low-voltage wiring channels and concealed motor housing directly into the aluminium extrusion profile dies.
Low-Carbon Recycled Aluminium & EPD Certification Transparency
Environmental Product Declarations (EPD) are rapidly becoming mandatory for international project tenders. Leading Chinese window manufacturers are adopting hydro-powered aluminium smelting and circular low-carbon recycled alloys (containing over 75% post-consumer scrap). Combined with non-toxic Qualicoat-certified powder coatings, these sustainable practices significantly lower embodied carbon footprint metrics for LEED and BREEAM-certified developments.
Enterprise Manufacturing Strength & Quality Execution
Integrated engineering, strict quality gates, and customized OEM/ODM workflows designed specifically for high-stakes international contracts.
20,000 m² Advanced Production Base
Equipped with 5-axis German CNC milling centers, automatic dual-head cutting saws, and high-precision corner-crimping machines ensuring zero-tolerance frame assembly alignment.
Global Multi-Standard Certifications
Fully tested and certified to NFRC (USA), AS2047 (Australia), CE (Europe), CSA (Canada), and ISO 9001 quality management benchmarks for hassle-free customs clearance.
Full OEM & ODM Customization
Custom profile extrusion dies, tailored powder coating (AkzoNobel / PPG RAL shades), wood-grain heat transfer finishes, and specialized architectural hardware integrations.
Rapid 15-Day Lead Time Execution
Streamlined manufacturing planning enables fast turnarounds—delivering standard project runs in as few as 15 business days following CAD shop drawing sign-off.
Heavy-Duty Export Crating Protection
Windows are protected with protective film, EPE shock foam, plastic corner caps, and fully enclosed, fumigation-free plywood crates for zero-breakage ocean freight transport.
Dedicated Engineering Support
In-house structural and facade engineers review window schedules, perform wind-load calculations, and issue bilingual shop drawings prior to production.
Frequently Asked Sourcing & Technical Questions
Clear, definitive answers to common inquiries from overseas project managers, procurement heads, and importers.
What is the minimum order quantity (MOQ) for custom aluminium open windows?
What thermal U-values can your aluminium thermal break windows achieve?
How long does standard export production and delivery take?
Are your window systems certified for regional building code compliance?
Do you offer OEM and ODM customization for hardware, finishes, and profiles?
How do you ensure zero glass breakage and frame damage during sea freight?
Ready to Source High-Performance Aluminium Open Windows?
Send your architectural drawings, elevation schedules, or project specifications. Our structural engineering team will deliver a comprehensive technical proposal and competitive factory quote within 24 hours.
