Featured Commercial & Residential Fenestration Systems

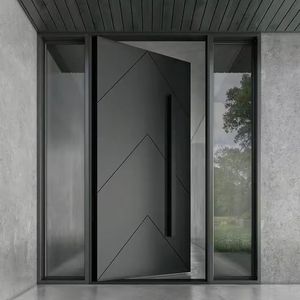

Architectural-grade aluminium arch frames, pivot entry doors, thermal-break tilt & turn systems, and heavy-duty sliding patio solutions direct from our Foshan facility.
Engineering Structural Aluminium Arch Doors: Manufacturing Physics & OEM/ODM Precision
An in-depth technical evaluation for structural engineers, project developers, and B2B procurement directors seeking structural durability, thermal efficiency, and radius accuracy.
Information Gain: Bending Tolerance & Structural Physics of Extruded Aluminium Arches
Unlike standard linear extrusion profiles, curved or semi-circular arch door profiles undergo intense mechanical stretch-bending stress. Standard 6063-T5 aluminum extrusions must maintain wall thickness uniformities of ≥2.0mm during variable-radius stretch bending to prevent inner-flange buckling, profile distortion, and micro-cracking of the thermal break cavity. ZENIC’s proprietary servo-controlled hydraulic roll-bending machinery ensures radius tolerances within ±1.0mm, allowing seamless integration with custom-tempered insulated double and triple glass units.
The Evolution of Curved Architectural Openings
Arch doors—spanning Gothic, Romanesque, and modern Minimalist Soft-Curve silhouettes—represent the pinnacle of luxury architectural design. However, for B2B distributors and general contractors, procuring architectural arch doors has historically posed severe engineering challenges: structural deflection under high wind loads, thermal bridging, and seal failures along the curved top rail.
As a leading OEM/ODM Aluminium Arch Door Factory & Supplier based in Foshan, China, Zenic Window & Door Technology Co., Ltd. addresses these engineering bottlenecks through multi-chamber 6063-T5 prime aluminum alloys, precision Polyamide (PA66GF25) thermal barrier strips, and customized corner-crimped structural joining methodologies.
Structural Profile Breakdown & Thermal Insulation Mechanics
To withstand extreme climatic conditions—ranging from high-velocity coastal winds in Australia and North America to scorching desert thermal expansion in the Middle East—our arch doors utilize an advanced profile engineering matrix:
- Primary Alloy Composition: Virgin 6063-T5 grade extrusions (tensile strength ≥180 MPa, yield strength ≥145 MPa). We maintain a zero-recycled scrap policy to guarantee structural rigidity and consistent surface anodizing or powder coating adherence.
- Polyamide Thermal Break Strips: High-density PA66GF25 (25% fiberglass reinforcement) thermal barriers isolate exterior thermal radiation, reducing total frame U-values down to 1.1 W/m²K when combined with warm-edge insulated glass units (IGU).
- Continuous EPDM Weather Gasketing: Triple-layer continuous vulcanized EPDM gaskets installed along the arch radius eliminate joint gaps, achieving air permeability ratings up to Class 4 (EN 12207) and water tightness ratings up to Class 9A (EN 12208).
2025–2030 Global Procurement Trends for Aluminium Arch Doors
Key market drivers, sustainability mandates, and technical innovations reshaping how commercial specifiers, developers, and door importers source architectural fenestration.
1. Ultra-Slim Sightlines & Large-Format Radius
Architects are abandoning bulky, traditional timber or steel arch profiles in favor of ultra-slim aluminium frames with visible sightlines under 30mm. Demand is surging for high-load pivot and French arch doors capable of housing glass panels up to 3.5 meters in height while retaining structural integrity.
2. Stringent Net-Zero Energy & Passive House Standards
Global building codes (such as Energy Star 7.0 in North America and EPBD in Europe) mandate aggressive thermal efficiency targets. Future arch door sourcing prioritizes triple-glazed Low-E argon-filled units with triple-seal polyamide thermal profiles, driving low U-values (<1.2 W/m²K).
3. Factory Direct Modular OEM/ODM Supply Chains
Developers are bypassing intermediary distributors to partner directly with certified Foshan OEM/ODM manufacturers capable of delivering fully assembled, pre-glazed, site-ready arch doors. This shift cuts procurement lead times by up to 30% and reduces job site installation labor costs.
Comprehensive Material & Performance Specification Matrix
Compare ZENIC’s custom extruded aluminium arch doors against standard market alternatives for B2B procurement decision-making.
| Performance Parameter | ZENIC OEM/ODM Arch Systems | Standard Aluminium Arch Doors | Traditional Timber Arch Doors |
|---|---|---|---|
| Frame Alloy Grade | Prime 6063-T5 Aluminum (2.0mm+ Wall Thickness) | Recycled 6063-T5 (1.4mm - 1.6mm) | Solid Hardwood / Softwood Composite |
| Radius Bending Tolerance | ±1.0 mm (CNC Servo Hydraulic Bending) | ±3.0 mm to ±5.0 mm (Manual Roll) | Varies based on moisture absorption |
| Thermal Insulation (U-Value) | 1.1 - 1.6 W/m²K (PA66GF25 Thermal Break) | 2.8 - 3.5 W/m²K (Non-Thermal Break) | 1.8 - 2.4 W/m²K (Vulnerable to warp) |
| Wind Pressure Resistance | Up to 4.5 kPa (AAMA / AS2047 Class High-Wind) | 2.0 - 2.5 kPa | 1.5 - 2.0 kPa |
| Hardware & Locking System | Multi-Point German Siegenia/GU (200,000 Cycles) | Single Latch / Standard Chinese Locks | Mortise Locks (Requires maintenance) |
| Surface Finish Durability | Qualicoat Class 2 Powder / PVDF / Fluorocarbon | Standard Anodized / Thin Coating | Polyurethane Varnish (Fades/Peels) |
| Service Life & Warranty | 30+ Years Structural / 10-Year Warranty | 10 - 15 Years | 5 - 10 Years (High maintenance) |
Why Partner with Zenic Window & Door Technology Co., Ltd.
Integrated manufacturing capabilities, rigorous quality assurance, and end-to-end export support from Foshan, China.
20,000 m² Production Base
Equipped with modern CNC cutting centers, automated corner crimping lines, servo roll-bending equipment, and insulated glass assembly operations under one roof.
Global Certification Suite
Our product lines are rigorously tested to global standards including NFRC (North America), CE (Europe), AS2047 (Australia), CSA, and ISO 9001 quality management standards.
Tailored OEM/ODM Flexibility
We provide full customization of extrusions, radius curves, architectural hardware brands, glass unit specs, wood-grain heat transfers, and custom RAL color matching.
Sea-Worthy Export Crating
Heavy-duty protective EPE foam wrapping, plastic edge protectors, and steel-reinforced fumigation-free plywood crates ensure 0% breakage across ocean freight routes.
Frequently Asked Questions for B2B Arch Door Sourcing
Clear answers to key questions asked by door importers, project specifiers, general contractors, and wholesalers.
Ready to Request CAD Shop Drawings & Factory Quotations?
Submit your door schedules, floor plans, or project specs. Our architectural engineering team will respond within 24 hours with complete technical proposals, U-value calculations, and competitive FOB/CIF pricing.
