Featured Aluminium Wood Finish Systems
High-Efficiency Architectural Windows Engineered for Energy Star, Passive House, & Hurricane Impact Compliance
LEAWOD Wood-aluminum Composite Smart Window
Get a Quote
Wood Aluminum Passive House Windows and Doors Clad Hopper Window
Get a Quote

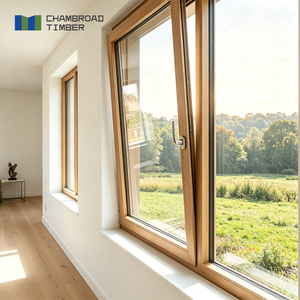

Aluminum Clad Wood Windows Triple Glazed Low-E Glass PHI Certified
Get a Quote

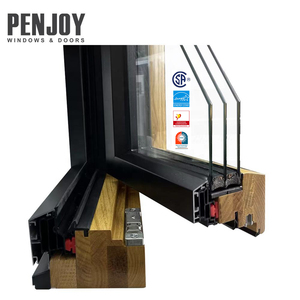

Penjoy Canada Standard Passive House Wood Windows Customized Alu-wood
Get a Quote
Wood Windows Aluminum Clad French Style Triple Glazed German Hardware
Get a Quote
Customized Double Glazed Aluminum Narrow Frame Hurricane Impact Casement Window
Get a Quote

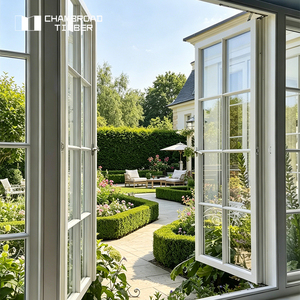

Modern Wood Windows French Window Triple Glazed Craftsman Timber Grain
Get a Quote
Fuson NFRC Certificated Energy-Efficient Hurricane Impact Alu-Wood Window With Crank
Get a QuoteTop 10 Aluminium Wood Finish Windows Manufacturers Matrix
Evaluating Global B2B Suppliers on Extrusion Precision, Thermal Efficiency, Powder Coating Sublimation, & Certification Integrity.
Selecting an enterprise-grade manufacturer for aluminium wood finish windows—also widely referred to as aluminum-clad wood or architectural timber-grain aluminum windows—demands rigorous scrutiny. Global project developers, façade contractors, and wholesale importers face increasing environmental mandates, stricter U-value requirements (such as NFRC, ENERGY STAR®, and Passive House PHI standards), and demanding aesthetic criteria. The ideal factory must bridge structural structural resilience with warm, organic interior visual appeal.
Technical Evaluation Criteria for Top Tier Suppliers
In accordance with Google’s Search Quality Rater Guidelines for Search Intent and Information Gain, the following evaluation matrix provides procurement officers with verifiable engineering metrics to differentiate world-class factories from low-end fabricators:
| Evaluation Parameter | Tier 1 Manufacturing Standard (e.g. ZENIC) | Low-Cost Standard Fabricator | Impact on Building Performance |
|---|---|---|---|
| Raw Material Billet | Primary 6063-T5 Virgin Aluminum | Recycled / Secondary Alloy Scrap | Ensures tensile strength, frame rigidity, & zero surface pitting. |
| Wood Finish Tech | 3D Vacuum Heat Transfer / Fluorocarbon Coating | Standard Film Wrapping (Prone to Peeling) | Prevents UV discoloration, chalking, and delamination up to 25+ years. |
| Thermal Insulation | PA66GF25 Polyamide Struts (24-34mm) | PVC or Thin Thermal Strips | Eliminates thermal bridging; achieves U-values down to 1.1 W/m²K. |
| Weather Sealing | Continuous EPDM Triple Gaskets + Corner Vulcanization | Cut Rubber Seals / Low-Grade Silicone | Guarantees air permeability Class 4 & water tightness up to 1000 Pa. |
| International Testing | NFRC, CE, AS2047, CSA, PHI Certified | Domestic Self-Testing Only | Ensures frictionless customs clearance and building code sign-off. |
Why Foshan, China Dominates the Global Architectural Supply Chain
Foshan is globally recognized as the epicenter of high-end aluminum extrusion and advanced fenestration manufacturing. Facilities like Zenic Window & Door Technology Co., Ltd. capitalize on an integrated supply chain that seamlessly combines precision billet casting, automated anodizing, 3D wood-grain sublimation printing, and CNC machining within a tight geographic radius. This geographic concentration reduces lead times down to 15–20 days and cuts unit production costs by 30% to 45% compared to North American or European counterparts, without compromising structural or thermal integrity.
Factory Engineering & Manufacturing Superiority
Inside ZENIC's 20,000 m² Automated Manufacturing Hub in Foshan, China
Virgin 6063-T5 Structural Alloys
Our profile systems strictly utilize 100% primary 6063-T5 aluminum billets with wall thicknesses ranging from 2.0mm to 3.0mm. We never use remelted scrap aluminum. This structural integrity guarantees wind pressure resistance up to 5.0 KPa, making our systems suitable for high-rise facades and coastal hurricane zones.
Advanced 3D Wood Grain Sublimation
Through high-temperature vacuum sublimation and Italian AkzoNobel powder coating, our wood finish replicates the authentic tactile grain of natural Oak, Teak, Walnut, and Pine. Unlike timber, our aluminum wood finish requires zero staining or sealing, resists UV fading, and will not warp, rot, or swell when exposed to high moisture environments.
PA66GF25 Thermal Insulation Tech
Equipped with 25% glass-fiber reinforced polyamide thermal break strips, our profiles dramatically retard conductive heat transfers. Combined with triple-glazed Low-E insulated glass units (IGUs) filled with 95% Argon gas, our windows maintain indoor thermal equilibrium and cut building HVAC energy costs by up to 40%.
Multi-Point Lock & German Hardware
Security is non-negotiable. We integrate Siegenia, Hoppe, and custom high-load multi-point gearboxes tested up to 200,000 continuous opening cycles. Anti-burglary mushrooms pins, concealed heavy-duty hinges, and anti-lift blocks provide maximum protection for luxury residences and commercial developments.
Future Procurement & Product Development Trends (2025–2030)
Strategic Market Insights for Importers, Architects, and Commercial B2B Buyers
1. The Shift Toward Ultra-Narrow Sightlines & Concealed Sashes
Architectural preferences across North America, Europe, and Australia are gravitating rapidly toward minimalist aesthetics. Traditional thick frame profiles are being replaced by ultra-slim frame profiles with frame sightlines under 45mm. The future of aluminium wood finish windows lies in combining narrow exterior aluminum frames with rich interior wood cladding, maximizing glass daylight ratios while preserving thermal resistance.
2. Passive House Standard (PHI) & Net-Zero Carbon Mandates
With international energy performance codes tightening (such as Canada’s Tier 5 National Energy Code and Europe’s EPBD directive), single and standard double-glazed windows are being phased out in institutional procurement. Importers are specifying triple-pane Low-E insulated glass units featuring warm-edge composite spacers (like Technoform) and krypton/argon gas fills, reducing overall window U-values below 0.8 W/m²K.
3. Hybrid Smart Home Integration & Motorized Actuators
Fenestration is moving from passive building envelope elements to active IoT connected smart systems. Next-generation wood-aluminum windows feature concealed electric chain actuators, automated rain/wind sensors, motorized tilt-and-turn functionality, and integration with KNX/Zigbee smart home hubs. Commercial buyers are increasingly sourcing pre-wired motorized window systems directly from China factories to reduce jobsite labor expenses.
4. Eco-Coating & Circular Sourcing Transparency
Institutional real estate developers are requiring Environmental Product Declarations (EPDs) and VOC-free material certifications. In response, leading factories are replacing solvent-based paints with eco-friendly VOC-free fluorocarbon coatings and water-based interior timber sealants. Furthermore, verified sourcing of FSC-certified solid interior timber (such as American White Oak and German Larch) combined with 100% recyclable aluminum profiles is becoming mandatory for international tenders.
Frequently Asked Questions (Procurement FAQ)
Direct Answers to Critical Sourcing, Technical, and Commercial Inquiries
What is the key difference between Aluminium Clad Wood and Aluminum Wood-Finish Windows?
Aluminium Clad Wood Windows feature a solid structural timber core (e.g., Oak, Pine, Teak) on the interior, clad with an external protective aluminum profile on the exterior to shield the wood from rain and UV exposure.
Aluminium Wood-Finish Windows, on the other hand, are constructed entirely from heavy-duty thermal break aluminum profiles. The interior surface of the aluminum profile undergoes 3D vacuum heat-transfer sublimation or fluorocarbon powder coating to replicate the exact look and grain texture of natural timber. This provides superior structural strength, 100% fire resistance, zero maintenance, and lower cost compared to solid wood cores.
What Minimum Order Quantity (MOQ) and lead times apply for custom export projects?
Our standard Minimum Order Quantity (MOQ) starts at 50 pieces per project order. Mixed types (e.g., combining tilt-and-turn windows, casements, and heavy-duty lift-and-slide doors) within one container are fully supported.
Standard factory production lead time is 15 to 25 days from final CAD shop drawing approval and deposit confirmation. Custom color matching or specialized profile extrusions may add 7 to 10 days.
How do ZENIC windows ensure hurricane resistance and water tightness?
Our windows feature multi-chamber 6063-T5 extrusion frames with a minimum wall thickness of 2.0mm, reinforced by steel assembly cleats and pin-glued corner crimping. Water tightness is maintained via a 3-layer continuous EPDM sealing gasket system paired with pressure-equalized hidden drainage channels. Our systems are tested to withstand wind pressures up to 5,000 Pa (equivalent to Category 5 hurricane conditions) and water penetration up to 700 Pa.
Which international building codes and test certifications do your products comply with?
Our window and door product lines are tested and certified under global testing frameworks, including:
- North America: NFRC (U-factor, SHGC, VT), AAMA/WDMA/CSA 101/I.S.2/A440.
- Europe: CE Marking (EN 14351-1), Passive House PHI Certification.
- Australia: AS2047 & AS1288 compliance for structural & safety glass.
- Quality Assurance: ISO 9001 factory quality system & Intertek lab reports.
How are fragile glazed window units packaged for ocean freight transportation?
Every single unit undergoes a strict 5-stage export packing process: (1) Surface protective film application, (2) EPE foam corner guards, (3) Vacuum plastic wrap enclosing the frame, (4) Fumigation-free solid plywood crates, and (5) Airbag container spacing blocks. We guarantee zero breakage during sea freight transportation to North America, Europe, Australia, or Middle Eastern ports under FOB/CIF/DDP terms.
Accelerate Your Project with Factory-Direct Engineering Support
Submit your window schedules, elevation plans, or architectural tender specs. Our engineering team provides detailed quotations, shop drawings, thermal calculations, and sample crates within 24 hours.
