Featured China Aluminium Mesh & Main Entrance Systems
Direct from Foshan's premier manufacturing center. High-precision 6063-T5 aluminum profiles, high-tensile stainless steel security mesh, and integrated multi-point security hardware.
DERCHI Simple Design Customized Size Aluminium Insulated Glass Windows Casement Window Modern Aluminium windows
Modern Aluminum Alloy Casement Door With Mosquito Net Sound Insulation For Residential House Villa Custom Size
Commercial Aluminium Smart Glass Storefront Door Exterior Doors for Commercial Buildings Hurricane Impact Storefront Glass Doors
Modern NFRC Aluminum Casement Window Double or Triple Glazed Tilt and Turn Window Custom Sizes for Villa Commercial Projects
Custom Aluminum Storefront Doors and Windows for Retail Shops, Restaurants, Hotels, Shopping Centers and Commercial Entrances
Alucasa American Iron Kitchen Door Design Interior Black Aluminium Steel Frame Track Glass Sliding Bathroom French Barn Door

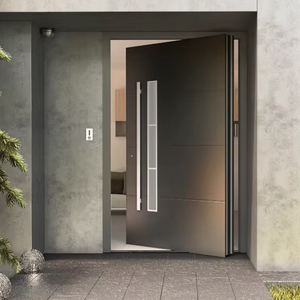

CBMmart Miami-Dade Certificate NFRC North American Style Panel Tempered Glass Aluminium/Metal Modern Entrance Front Pivot Doors
Matt Black Anodized Kitchen Cabinet Door Frame Aluminium Profile for Glass Kitchen Cabinet Doors
Why Top Global Buyers Choose Foshan Aluminium Mesh Door Factories
Zenic Window & Door Technology Co., Ltd. operates a state-of-the-art 20,000 m² manufacturing hub in Foshan, Guangdong—the epicenter of global aluminum extrusion excellence.
Integrated CNC machining, powder coating, and corner crimping assembly lines.
Supplying builders and wholesalers across North America, Europe, Australia, and MEA.
Ultra-low thermal transmittance engineered with PA66 polyamide thermal breaks.
Heavy-duty multi-point locking systems rated for extreme wind loads up to 1,000 N.
Engineering Guidelines for Sourcing High-Security Aluminium Mesh Main Doors from China
In modern residential architecture and commercial development, main entrance doors must balance conflicting demands: high structural security, active insect screening, uninterrupted natural light, superior ventilation, and extreme thermal insulation. Sourcing an aluminium mesh door for main door applications from top-tier Chinese factories has become the global standard for property developers, fenestration distributors, and main contractors seeking cost-optimized, certified performance.
Top China factories have evolved far beyond basic fly-screen production. Today’s industrial ecosystem leverages 6063-T5 virgin aluminum alloy extrusion profiles combined with 304 or 316 marine-grade stainless steel security mesh (often referred to as Crimsafe-type or bullet-resistant woven mesh). This synergy delivers an impenetrable barrier against forced entry, insects, and hurricane-force debris while preserving pristine aesthetic lines.
Technical Knowledge Insight: Virgin Billet vs. Recycled Profile Integrity
Leading Foshan manufacturers strictly reject recycled scrap alloy. Premium primary 6063-T5 aluminum billets deliver uniform wall thickness (ranging from 2.0 mm to 3.0 mm on load-bearing frames), ensuring zero structural distortion under heavy mechanical loads or extreme thermal expansion cycles.
1. Anodizing & Powder Coating Surface Finishing Technology
Main entrance doors face direct environmental weathering, UV exposure, and salt-mist corrosion in coastal zones. Leading China factories employ advanced vertical powder-coating lines utilizing AkzoNobel or PPG fluorocarbon (PVDF) coatings. These coatings provide standard dry-film thicknesses between 60 to 80 microns, passing 3,000-hour neutral salt spray (NSS) testing without blistering or color fading.
2. Stainless Steel Security Mesh Specification Standards
The core structural element of a modern main door mesh system is the high-tensile stainless steel mesh screen. When evaluating factory specifications, procurement officers must inspect three critical parameters:
- Wire Diameter: Ranging from 0.70 mm to 1.00 mm. Thicker wires provide high knife-shear resistance and anti-impact performance.
- Mesh Count & Aperture: Standard 11-mesh or 14-mesh configurations maintain clear optical clarity from inside out while blocking mosquitoes, midges, and pests.
- Clamping System: Top manufacturers use dual-wedge, screwless aluminum pressure bar retention channels filled with heavy-duty EPDM damping strips. This prevents screen blowout even under intense mechanical pressure.
3. Thermal Break Engineering & Acoustic Isolation
For colder climates or air-conditioned desert environments, uninsulated aluminum frames create thermal bridges that drastically increase HVAC energy consumption. Top China factories integrate imported Polyamide PA66-GF25 (25% glass fiber reinforced) thermal break strips into the frame extrusion. When paired with double or triple-glazed insulated glass units (IGUs) featuring argon gas filling and Low-E coatings, overall system U-values drop to an impressive 1.1 W/m²K, while acoustic insulation reaches STC ratings above 42 dB.
Burglar-Proof Security
304/316 woven stainless mesh locked into 2.0mm+ extrusions with multi-point stainless steel shoot bolts and anti-pry lock keeps.
Precision CNC Manufacturing
Mitered 45-degree pin-and-glue corner assembly infused with two-component structural epoxy ensures zero rainwater leakage.
All-Weather Airflow
Enables natural ventilation during cool evenings while maintaining a fully secured perimeter against insects, intruders, and storm debris.
Future Procurement Trends for Main Door Systems
Architectural demands are shifting fast. Discover the key innovations driving global purchasing decisions over the next decade.
Smart Lock & Biometric Integration
Modern buyers demand main doors pre-engineered with concealed conduit channels for smart facial recognition, fingerprint access, and IoT smart home connectivity built directly into the aluminum frame.
Minimalist Ultra-Slim Sightlines
Narrow frame visual profiles (under 30 mm visible face) are replacing bulky frames, providing panoramic views while retaining structural strength through high-wall alloy engineering.
Standardized Green Certifications
Global building codes require verified environmental product declarations (EPDs). Leading China factories now offer NFRC, CE, AS2047, and ENERGY STAR compliant door schedules.
Technical Benchmark Specifications Table
Compare performance metrics across standard residential mesh doors, heavy-duty security entrance doors, and commercial storefront mesh systems.
| Performance Parameter | Standard Residential Mesh Door | Heavy-Duty Villa Main Mesh Door | Commercial Storefront Mesh System |
|---|---|---|---|
| Aluminum Alloy Grade | 6063-T5 (1.4 - 1.8mm) | 6063-T5 (2.0 - 3.0mm) | 6063-T6 Structural Profile |
| Security Mesh Type | 304 Stainless (0.7mm Wire) | 316 Marine Stainless (0.9-1.0mm) | High-Impact Security Mesh / Smart Glass |
| Thermal Insulation (U-Value) | 2.2 - 2.8 W/m²K | 1.1 - 1.6 W/m²K (PA66 Break) | 1.4 - 1.8 W/m²K |
| Wind Pressure Resistance | 600 Pa | 1,000 Pa (HVHZ Rated) | 1,200 Pa |
| Locking Mechanism | Single/3-Point Lock | Multi-Point German Lock System | Smart Access Control / Electromagnetic |
| International Testing | ISO 9001 | NFRC, CE, AS2047, AAMA | CE, Miami-Dade Hurricane Impact |
Frequently Asked Questions for Overseas Importers
Everything you need to know about custom ordering, MOQs, engineering lead times, and ocean freight packaging from China.
Q: What is the Minimum Order Quantity (MOQ) for custom main door projects?
Our standard minimum order quantity starts at 50 units. We allow buyers to combine mixed window and door schedules (e.g., casements, tilt & turn, main mesh doors, sliding walls) within a single container order.
Q: How long does production and container shipping take?
Standard production lead times range from 15 to 25 days following CAD shop drawing confirmation and deposit payment. Goods are loaded FOB Foshan or Shenzhen port for ocean transit worldwide.
Q: Are your main door mesh systems certified for coastal high-humidity areas?
Yes. We utilize 316-grade stainless steel woven security mesh combined with PVDF fluorocarbon powder coating that easily withstands 3,000+ hours of salt spray exposure without surface pitting or rust.
Q: Do you support private label branding and OEM extrusion customization?
Absolutely. We offer complete OEM/ODM services including custom aluminum die extrusions, specialized RAL powder coat colors, custom glass unit specs, laser-etched hardware branding, and private packaging.
Q: How do you protect glazed door units during ocean transit?
All door frames and insulated glass units undergo 5-layer export packaging: inner EPE protective foam wrap, corner rubber guards, plastic shrink film, and heavy-duty, fumigation-free solid plywood crates.
Q: Can your factory supply architectural CAD drawing and engineering submittals?
Yes. Our in-house engineering design team provides complete DWG/BIM 3D shop drawings, wind load calculation reports, and thermal submittal sheets within 48 hours of project plan submission.
Request Your Custom Aluminium Door Engineering Catalog & Quote
Connect directly with Zenic Window & Door Technology engineers. Get full technical drawings, factory-direct pricing, and product catalogs within 24 hours.
