Featured Export-Grade Window & Door Solutions
Direct factory recommendations engineered for residential, commercial, and structural architectural projects across 40+ countries.

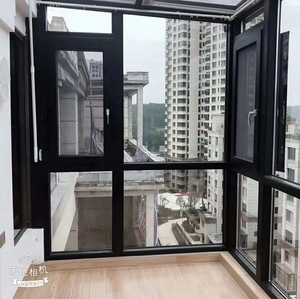

Fuson NFRC Certified Energy-Efficient Hurricane Impact Aluminum Wood Composite Casement Window
Get a Quote
Customized Aluminium Veranda Double Tempered Glass Sliding Door System with Heavy-Duty Rails
Get a Quote
Modern Exterior Flush Aluminum Alloy Double Glazed Waterproof Sliding Patio Door System
Get a Quote

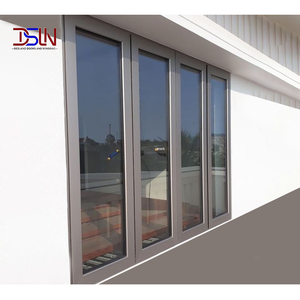

Anthracite Grey Composite Thermal Casement Window System for High-Performance Residential Housing
Get a Quote
AUMEGI Automatic Heavy-Duty Aluminum Shutter & Jalousie Louver Window for Commercial Facilities
Get a Quote

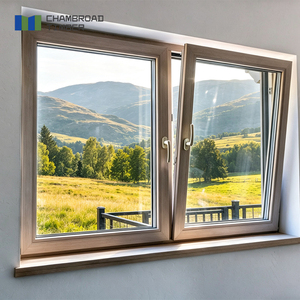

Fireproof Anti-Theft Wood-Aluminum Composite Casement Window (CSA Certified Commercial Spec)
Get a Quote

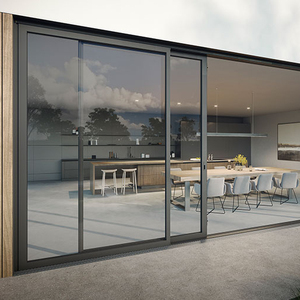

AS2047 Standard 3-Panel Glass Aluminum Stacker Sliding Doors for Coastal High-Wind Environments
Get a Quote
Superhouse Commercial Hinged Swing Door System with ADA Threshold Sill & Panic Push Bar
Get a QuoteThe Evolution of China's Aluminum Lower Window & Fenestration Manufacturing Hubs
In the global fenestration industry, China—specifically the Foshan industrial cluster in Guangdong—has established itself as the undisputed epicenter for high-precision architectural aluminum production. Historically recognized for high-volume aluminum extrusions, leading Chinese fenestration manufacturers have undergone a fundamental technology shift over the past decade. Today, premier China aluminum lower window factories and exporters operate state-of-the-art facilities equipped with multi-axis CNC machining centers, automated corner-crimping cells, and high-efficiency insulating glass unit (IGU) assembly lines.
Architectural lower windows—encompassing fixed ground-level glazing, basement egress units, operable lower-sash casements, low-sill sliding configurations, and integrated sub-grade structural glazing—require vastly superior weatherization, structural integrity, and water resistance compared to standard upper-story windows. Located close to terrain grade, lower windows are subject to increased hydro-static pressure during localized storm surges, ground surface heat radiation, splashback debris, and heightened security vulnerability.
To meet rigorous global building codes—such as Florida’s High-Velocity Hurricane Zone (HVHZ) requirements, Australia’s AS2047 structural deflection standards, and Europe’s stringent Passive House thermal mandates—leading exporters like Zenic Window & Door Technology Co., Ltd. utilize primary 6063-T5 virgin aluminum alloys with structural profile wall thicknesses reaching 2.0mm to 3.0mm. By eliminating recycled alloy scrap, these structural profiles maintain flawless surface uniformity for electrostatically applied Qualicoat-certified powder coatings and anodized architectural finishes capable of enduring 3,000+ hours of continuous salt-spray testing.
Future Sourcing & Procurement Trends in Aluminum Fenestration (2025–2030)
The international window and door procurement landscape is experiencing rapid modernization. Importers, facade contractors, developers, and wholesale distributors must navigate changing regulatory frameworks, carbon taxation schemes, and evolving architectural preferences. Below are the key structural trends driving sourcing strategies from top Chinese exporters:
Polyamide PA66GF25 Thermal Barriers
Traditional non-thermal aluminum frames are virtually obsolete in Western markets. Procurement is pivoting toward multi-cavity thermal break profiles insulated with 25% glass-fiber reinforced Polyamide (PA66GF25) strips, dramatically stopping thermal bridges and lowering HVAC energy loads.
Integrated Low-Threshold & Concealed Drainage
Modern architectural lower windows and patio sliding doors demand seamless indoor-outdoor transitions. Advanced factories now engineer pressure-equalized hidden floor drainage systems that allow flush sill profiles while maintaining class-leading water tightness up to 1,000 Pa.
Smart Motorization & Automated Ventilation
Commercial facilities and high-end residential estates increasingly specify integrated motorized actuators. Louver jalousie windows and lower clerestory sashes are synchronized with building management systems (BMS) for automated natural ventilation and climate control.
Hybrid Material Structures
Combining the exterior weather resilience of structural 6063-T5 aluminum with internal natural timber linings (Aluminum-Wood Composites) or interior PVC co-extrusions allows specifiers to achieve luxury aesthetic appeal inside without compromising structural durability outside.
Triple Glazing with Warm-Edge Spacers
With stringent Net-Zero carbon mandates, buyers require Low-E glass units insulated with Argon gas fill (90%+) and structural warm-edge polymer spacers, pushing overall window U-factors down toward passive house performance thresholds ($U_w \le 0.8 - 1.1 \text{ W/m}^2\text{K}$).
Complete Factory Prefabrication & Modular Packing
High overseas site labor costs are driving demand for 100% pre-glazed, hardware-fitted, factory-assembled window units. Export shipments now rely on custom plywood crating with position-coded labelling for fast direct-to-opening installation.
Technical Specification & Performance Benchmark Matrix
Evaluating factory capabilities requires analyzing quantitative engineering parameters rather than generic marketing claims. The table below details the target engineering benchmarks maintained by top tier Chinese fenestration exporters for international project submittals:
| Performance Parameter | Standard Specification Benchmark | High-Performance Export Benchmark | Engineering Benefit |
|---|---|---|---|
| Profile Alloy Grade | Standard 6063-T5 Aluminum | Virgin 6063-T5 / T6 High-Tensile Billet | Prevents structural frame bowing; optimizes corner crimp strength |
| Frame Depth (Lower Windows) | 55 mm – 65 mm Depth | 90 mm – 150 mm Multi-Chamber Profile | Accommodates heavy triple glazing & deep thermal break strips |
| Thermal Insulation ($U_w$) | 2.2 – 2.8 W/m²K | 1.1 – 1.4 W/m²K (Passive-Ready) | Massive HVAC savings; complies with strict energy codes |
| Air Infiltration Rating | ASTM E283 Level 2 | ASTM E283 Level 1 / Class 4 (EN 12207) | Zero draft leakage; prevents dust and particulate intrusion |
| Water Resistance Pressure | 350 Pa (7.5 psf) | 700 Pa – 1000 Pa (20.5 psf) | Prevents lower-level flooding during torrential wind-driven rain |
| Acoustic Attenuation (STC) | STC 28 – 32 dB | STC 42 – 48 dB (Laminated Double IGU) | Blocks urban street noise, heavy traffic, and lower-level ambient sound |
| Hardware Life Cycle | 50,000 Cycle Testing | 200,000+ Operational Cycles | Eliminates field service calls; supports 60kg - 300kg heavy sashes |
| Surface Coating Spec | Standard Powder Coat (40µm) | Qualicoat Class 2 / PVDF 3-Coat (80µm) | Resists UV chalking, coastal salt-air corrosion, and color fading |
Why Global Buyers Choose ZENIC & Top Foshan Exporters
Selecting the right China aluminum lower window manufacturer is critical to project execution. Zenic Window & Door Technology Co., Ltd. represents the peak of Foshan’s technical manufacturing capability, offering end-to-end control over the entire production cycle:
20,000 m² Automated Manufacturing Base
Our expansive industrial footprint houses automated CNC profile cutting double-head saws, digital corner-punching machinery, and dedicated silicone seal curing racks for rapid, high-volume project throughput.
Multi-National Certification Portfolio
Our fenestration series carry independent laboratory testing and credentials including North American NFRC & AAMA certifications, European CE marking, Canadian CSA standards, and Australian AS2047 compliance.
Pin-and-Glue Corner Joint Engineering
Unlike cheap factories using simple mechanical screws, our window frame corners feature injection-molded corner cleats with two-component polyurethane adhesive, guaranteeing structural rigidity and zero corner joint water leakage.
15-Day Expedited Production Cycles
By maintaining raw 6063-T5 profile stock and operating an internal powder-coating line, standard project orders ship in as little as 15 business days following final CAD shop drawing verification.
OEM / ODM Custom Profile Development
We work directly with architects and developers to design bespoke extrusion profiles, customized RAL colors, simulated wood-grain heat transfers, and custom hardware brand integration (Siegenia, Hoppe, Roto, Kinglong).
100% Pre-Shipment Inspection & Sea-Worthy Crating
Every single frame undergoes structural dimensional checks, hardware operational testing, and water-spray validation before being wrapped in protective EPE film and sealed inside fumigation-free solid plywood export cases.
Frequently Asked Questions for Window Procurement Managers
What is the Minimum Order Quantity (MOQ) for custom aluminum lower windows?
Our project minimum order quantity starts at just 50 units or 100 square meters. You can aggregate multiple window and door types (e.g., ground-floor sliding doors, lower casement windows, tilt-and-turn units) within a single container order to easily satisfy MOQ requirements.
How do China factories ensure window water tightness on lower ground-level installations?
Lower ground windows are vulnerable to splashback and water accumulation. Top exporters use multi-chamber thermal break profiles equipped with pressure-equalized hidden drainage channels, three-stage continuous EPDM weatherstripping gaskets, and corner injection glue joints that prevent water ingress even under 700+ Pa rain pressures.
What glass configurations are recommended for lower window energy efficiency and safety?
For lower windows, safety tempered or laminated glass is mandatory. We recommend Double IGU (6mm Tempered Low-E + 12A/16A Argon + 6mm Tempered) or Triple IGU for cold regions. Laminated glass (6mm + 1.52PVB + 6mm) is highly recommended for ground-level forced-entry prevention and hurricane impact zones.
Can you custom match profile colors to existing jobsite specifications?
Yes. We offer complete RAL color matching using premium AkzoNobel or PPG powder coatings. In addition, we provide anodized metallic finishes (champagne, bronze, black, silver) and Italian heat-transfer wood-grain finishes that replicate oak, teak, or walnut without the maintenance risks of natural timber.
How are large window and door orders protected against damage during ocean container transport?
All finished window units are wrapped in dust-proof EPE protective foam, reinforced with plastic edge protectors, and loaded into heavy-duty, fully enclosed, fumigation-free solid plywood crates. Individual crates are position-numbered to align with your building elevation drawings for rapid site unloading.
What documentation and shop drawings do you provide before manufacturing begins?
Upon receiving your architectural window schedule or elevation PDF/AutoCAD drawings, our engineering department generates detailed 2D/3D shop drawings. These drawings specify exact frame dimensions, glass makeup, thermal break locations, wall anchoring details, structural wind load calculations, and hardware configurations for client approval before cutting metal.
Ready to Source High-Performance Aluminum Windows Direct from Foshan?
Send us your project window schedules, CAD elevations, or custom specification requirements. Our factory engineering team will provide detailed shop drawings and competitive FOB/CIF quotation within 24 hours.
