Featured Architectural Fenestration Systems
Explore our engineered range of high-performance thermal break aluminum windows, oversized sliding structures, soundproof casements, and modern pivot door assemblies designed for luxury residential and commercial architecture.

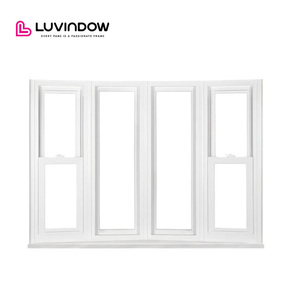

Best Selling Aluminium Corner Bay Heat Insulation Low-E Double Glazed Fixed Textured Bow Window Casement Bay Aluminium Windows
Inquire Now
Soundproof Aluminum Casement Windows With Screens Aluminum Awning Casement Tilt and Turn windows For Residential
Inquire Now

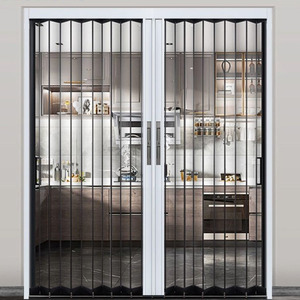

Super Mall Crystal Folding Shutter Door Aluminum Polycarbonate Clear Frosted PVC Plastic Sliding Narrow Folding Screen Door
Inquire Now
Modern High-End Aluminum Sliding Glass Doors Custom Exterior Entrance Doors For Villa House Hotel Living Room
Inquire Now

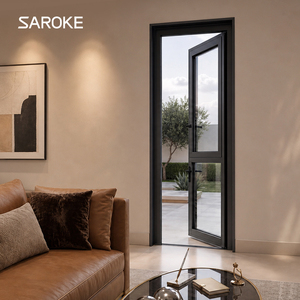

American Standard House Black Metal Patio Exterior Thermal Break Aluminum Doors and windows
Inquire Now
Heavy Duty White Aluminum Lift and Slide Doors Large Size 4 Panels Triple Pane Glass Thermal Insulation Sliding Door with Grid
Inquire Now
Doors and Windows Manufacturers Horizontal Aluminum Sliding Windows Buildings Screen Window With Wholesale Of New Materials
Inquire Now
Wholesale's Price Ventilated Single-layer Glass Aluminum Sliding Windows for Home
Inquire NowGlobal Manufacturing Authority & Production Capacity
As a premier Foshan-based architectural fenestration manufacturer, ZENIC Window & Door Technology Co., Ltd. specializes in the structural design, precision extrusion, thermal isolation engineering, and export fabrication of high-end aluminum pivot doors and curtain wall systems. Operating across a 20,000 m² state-of-the-art manufacturing hub, our facility integrates heavy-duty CNC profile processing centers, automated corner-crimping technology, and climate-controlled double/triple IGUs (Insulated Glass Units) assembly lines.
Exporting to over 40 countries across North America, Europe, Australia, and the Middle East, our technical team works closely with structural engineers, façade consultants, commercial developers, and high-end residential builders. Every aluminum pivot door system engineered in our facility undergoes stringent quality control procedures—reaching certifications compliance including NFRC, CE, AS2047, CSA, AAMA, and ISO 9001.
Engineering Whitepaper: The Mechanics & Physics of Architectural Pivot Doors
Modern architectural design increasingly demands grand entrance footprints, seamless interior-to-exterior transitions, and dramatic visual statements. Aluminum pivot doors have emerged as the definitive solution for large-scale structural openings where traditional butt-hinged swing doors reach their physical load-bearing and dimensional limits.
1. Structural Mechanics & Load Distribution
Unlike standard side-hinged doors that transfer tension and cantilever force directly onto the vertical side jambs, an aluminum pivot door transfers its dead load vertically downward onto floor-mounted hydraulic pivot spindles. By offsetting the pivot axis—typically at 150mm to 300mm from the jamb or customized to a center-pivot configuration—the structural leverage is dramatically reduced.
Our engineered profiles utilize T6-treated 6063-T5 virgin aluminum alloys with profile wall thicknesses ranging from 2.0mm to 3.0mm. This heavy-gauge extrusion ensures torsional rigidity, preventing frame deflection, bow, or warp under severe wind load pressure (tested up to 1,000 N wind pressure rating).
2. Thermal Isolation & Environmental Sealing Integration
Historically, oversized pivot doors faced challenges regarding air infiltration and water tightness. ZENIC overcomes thermal bridging by integrating Polyamide (PA66-GF25) thermal break strips engineered with 25% glass fiber reinforcement. This structural thermal barrier effectively separates the exterior aluminum extrusion from the interior frame, dramatically dropping heat conduction.
To ensure atmospheric isolation, our pivot door assemblies feature a continuous multi-layer EPDM (Ethylene Propylene Diene Monomer) triple-gasket seal system coupled with automatic drop-down concealed bottom sweeps. When closed, pneumatic drop seals automatically compress against floor thresholds, achieving water tightness ratings suitable for coastal and extreme weather zones.
3. Advanced Glazing & Acoustic Engineering
Large-format glass leaves require specialized glazing engineering to maintain structural integrity while optimizing acoustic STC (Sound Transmission Class) ratings and thermal SHGC (Solar Heat Gain Coefficient). We incorporate double or triple-pane tempered laminated glass configurations filled with 90%+ Argon gas and treated with Low-Emissivity (Low-E) soft coatings. This yields thermal U-values down to 1.1 W/m²K and sound attenuation up to 42 dB, shielding luxury interiors from ambient urban noise.
Future Procurement & Architectural Sourcing Trends
As global building energy codes tighten and architectural design aesthetics lean toward hyper-minimalism, foreign importers, developers, and trade buyers must align their supply chains with next-generation manufacturing technology.
Ultra-Large Oversized Leaf Formats
Architectural demands are shifting from standard 2.1m heights to monolithic 3.5m–6.0m floor-to-ceiling pivot leaves. Modern procurement requires manufacturers capable of engineering internal tension rod stiffeners to maintain plane linearity across seasonal temperature swings.
Smart Building Access & Automation Integration
Commercial and high-end residential sourcing now heavily specifies automated motorized pivot openers, biometric fingerprint sensors, facial recognition access, and concealed electro-magnetic multi-point locking mechanisms interfaced directly with Smart Home IoT protocols.
Sustainable & Decarbonized Aluminum Sourcing
ESG directives in North America and Europe mandate verified low-carbon aluminum billets processed via renewable energy smelting. B2B buyers require Environmental Product Declarations (EPD) to qualify for LEED v4.1 and BREEAM sustainable building credits.
Technical Specification Benchmarks: ZENIC Pivot Systems
Use this reference table to evaluate structural specs, hardware configurations, and performance limits for commercial tender preparation:
| Performance Parameter | Standard Specification | Heavy-Duty Commercial Grade | Compliance / Standard Verified |
|---|---|---|---|
| Profile Alloy & Temper | 6063-T5 Virgin Aluminum (2.0mm) | 6063-T6 Structural Grade (2.5mm–3.0mm) | GB/T 5237 / ASTM B221 |
| Thermal Insulation (U-Value) | 1.6 – 1.8 W/m²K (Double Glazed) | 1.1 – 1.3 W/m²K (Triple Low-E + Argon) | NFRC 100 / EN ISO 10077 |
| Max Leaf Load Capacity | Up to 300 kg (660 lbs) | Up to 1,000 kg (2,200 lbs) | DORMA KABA / FritsJurgens Pivot Test |
| Acoustic Isolation (STC) | STC 35 dB | STC 42 - 45 dB | ASTM E90 / ISO 140-3 |
| Air Infiltration & Water Resistance | Class 4 Air / 600 Pa Water | Class 4 Air / 1050 Pa Water Resistance | AS2047 / EN 12207 / EN 12208 |
| Surface Coating Standards | Qualicoat Powder Coating (60-80μm) | AkzoNobel PVDF Fluorocarbon (3-Coat) | AAMA 2605 / ISO 2810 Coastal Grade |
Frequently Asked Sourcing & Technical Questions
Answers to key engineering, minimum order quantity (MOQ), warranty, customization, and export logistics queries raised by global importers and project contractors.
Request Your Project Calculation & Shop Drawings
Submit your project window schedule or elevation drawings today. Our senior engineering directors respond within 24 hours with complete technical quotes, factory direct pricing, and CAD submittals.
Direct Engineering Desk: [email protected] | Foshan Industrial Zone, Guangdong, China
