Export Product Lineup
Certified Aluminium Window & Door Systems
Engineered in our 20,000 m² Foshan manufacturing facility for European structural, acoustic, and thermal performance benchmarks.
Exterior Aluminium Entry Door Front Door Security Door For Homes, Villas And Apartments (Custom Sizing)

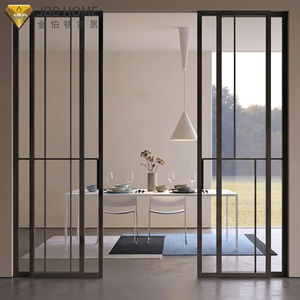

NFRC Certified Hurricane Impact Heavy-Duty Aluminium Sliding Glass Door Double Tempered Glass
Accordion Folding Glass Door Aluminium Sliding Glass Doors Frameless Bi-Fold Sliding System
Double Glass Stacker Doors Commercial Exterior Patio Panoramic Aluminium Sliding Doors with Mesh
Aluminium-Clad Timber Window PHI EnerPHit Ready Uw≤0.8 W/m²K ROTO Hardware CE EN14351 Heritage Style
Aluminium Tempered Glass Sliding Balcony Veranda Door Soundproof Patio System For Modern Homes
Aluminium Clad Wood Windows Triple Glazed Low-E Glass PHI Certified Energy Star Soundproof System
20,000m²
Foshan Factory Base
Uw 0.8W/m²K
Lowest Thermal Transmittance
40+
Global Export Markets
200,000
Hardware Cycle Tested
Engineering Excellence: Aluminium Folding Stacking Doors Built for Hamburg’s Architectural & Maritime Demands
Hamburg, Germany’s second-largest city and major maritime trade hub, represents one of Europe’s most demanding architectural microclimates. Situated along the River Elbe and subject to damp North Sea weather systems, buildings in Hamburg require fenestration products that seamlessly unite high structural wind load resistance, superior thermal envelope efficiency (GEG 2024 compliance), and advanced sound insulation against port and urban traffic noise.
As a premier aluminium folding stacking doors manufacturer and exporter for Hamburg, Zenic Window & Door Technology Co., Ltd. delivers custom-engineered architectural door systems directly from our 20,000 m² manufacturing plant in Foshan, China. By bridging high-precision extrusion manufacturing with stringent European norms (CE EN 14351-1, DIN EN 12210, DIN EN 12207, and DIN EN 12208), ZENIC offers German architects, general contractors, property developers, and window importers an unbeatable combination of technical superiority, direct factory pricing, and tailormade OEM/ODM customization.
Key Features of ZENIC Aluminium Folding & Stacking Door Systems
Polyamide PA66GF25 Thermal Breaks
Multi-chamber polyamide thermal break profiles prevent thermal bridging, enabling door system overall U-values ($U_w$) as low as 0.8 to 1.1 W/m²K, meeting passive house (EnerPHit) and German GEG energy mandates.
Heavy-Duty Roller & Track Hardware
Bottom-hung tandem stainless steel roller carriages (SUS304/316) support sash weights up to 300 kg per panel. Glides effortlessly across 200,000 operational cycles with minimal maintenance.
Six-Seal EPDM Continuous Gaskets
Vulcanized corner joints combined with multi-layer continuous EPDM rubber seals deliver outstanding air permeability (DIN EN 12207 Class 4) and driving rain resistance (DIN EN 12208 Class E1050).
Localized Application Scenarios in Hamburg & Northern Germany
Whether designing contemporary waterfront villas or refurbishing historic residential complexes, ZENIC aluminium bi-fold and multi-panel stacker door systems adapt to Hamburg's diverse architectural landscape:
HafenCity & Baakenhafen High-Rise Penthouse Terraces
In high-density modern developments like HafenCity, elevated wind pressure demands rigid profiles with minimal deflection. ZENIC stacker doors feature reinforced 2.5mm to 3.0mm structural wall extrusions that maintain structural integrity during North Sea storm fronts while offering floor-to-ceiling panoramic glass walls.
Elbchaussee & Blankenese Luxury Waterfront Villas
For expansive residential estates overlooking the Elbe River, homeowners prioritize seamless transitions between living rooms and outdoor garden terraces. ZENIC bi-fold doors open up to 90% of the opening width, incorporating zero-barrier flush thresholds (Barrierefreies Wohnen according to DIN 18040-2).
Eppendorf & Winterhude Residential Retrofits
Upgrading 19th-century Gründerzeit apartments or mid-century structures requires tight sound attenuation ($R_w \ge 42 \text{ dB}$) to shield interiors from urban traffic along Bellevue or Outer Alster transit lines. Our triple-glazed acoustic acoustic laminates shut out street noise entirely.
Alster Terraces & St. Pauli Commercial Venues
Gastronomy, hotels, and event spaces around Jungfernstieg require heavy-duty bi-fold stacking systems that endure high daily customer traffic. Multi-point lock gearboxes, anti-slam catches, and scratch-resistant powder coatings maintain operational reliability under heavy commercial usage.
Local Hamburg Architectural & Energy Trends (GEG 2024 & Beyond)
The German building sector is subject to stringent regulations aimed at climate neutrality. Understanding these trends allows ZENIC to engineer tailored fenestration systems for Hamburg importers:
- Gebäudeenergiegesetz (GEG 2024) Compliance: Standard exterior doors installed in retrofits or new builds in Germany must achieve maximum U-values around $U_w \le 1.3 \text{ W/m}^2\text{K}$. ZENIC system designs reach $U_w$ values down to $0.8 \text{ W/m}^2\text{K}$ using triple-pane Low-E glass units with warm-edge spacers (TGI/Swisspacer) and argon gas filling.
- Acoustic Isolation Demands (Lärmschutz): Hamburg’s active port operations, rail networks, and dense urban arterial roads require high Sound Transmission Class (STC) fenestration. ZENIC multi-chamber systems accommodate acoustic laminated glass panels up to 48mm thick, providing acoustic dampening from $R_w = 38\text{ dB}$ up to $48\text{ dB}$.
- Minimalist European Aesthetics: Modern Hamburg architecture favors ultra-slim profile sightlines (as narrow as 30mm interlocking stiles) with concealed hinges, integrated multi-point locking gear, and customized RAL color choices (e.g., Anthrazitgrau RAL 7016, Tiefschwarz RAL 9005, and DB 703 metallic fine structure).
Technical Comparison: ZENIC Stacking & Folding Doors vs. Standard Systems
| Performance Metrics | ZENIC Heavy-Duty Folding Stacker | Standard Market Bi-Fold | Relevance for Hamburg Projects |
|---|---|---|---|
| Profile Alloy & Thickness | 6063-T5 Virgin Billet (2.0–3.0 mm) | Recycled Alloy (1.4–1.6 mm) | Resists deformation under high wind load (DIN EN 12210 Class C5). |
| Thermal Transmittance ($U_w$) | 0.8 – 1.1 W/m²K (EnerPHit level) | 1.8 – 2.4 W/m²K | Fully compliant with GEG 2024 energy-saving mandates in Germany. |
| Surface Treatment | Qualicoat Class 2 / Marine Anodized | Standard Class 1 Powder Coating | Prevents corrosion from saline mist along the Elbe & North Sea coast. |
| Watertightness (DIN EN 12208) | Class E1050 (1050 Pa pressure) | Class 5A (200 Pa pressure) | Prevents rain leakage during severe coastal driving rainstorms. |
| Maximum Sash Capacity | Up to 300 kg per panel | 90–120 kg per panel | Enables massive triple-glazed panels up to 3.5 meters high. |
| Hardware Longevity | 200,000 Tested Open/Close Cycles | 20,000–50,000 Cycles | Reduces warranty callbacks for German general contractors & developers. |
Why Hamburg Developers & Wholesalers Partner with ZENIC
ZENIC is not merely a manufacturer; we act as an extension of your engineering team. Operating out of Foshan—China's global capital for aluminium extrusion manufacturing—our facility incorporates automated CNC cutting stations, precision corner-crimping machinery, and pressurized water-spray testing booths.
- 100% Pre-Assembly & Inspection: Every bi-fold and stacking door assembly is completely fitted with hardware, test-operated, and pressure checked in our plant prior to crating.
- Fumigation-Free Sea-Worthy Packaging: Doors are packed with protective EPE foam, heavy plastic wrapping, reinforced corner guards, and encased in fully sealed export plywood crates to ensure zero transit damage to the Port of Hamburg.
- Bespoke OEM/ODM Flexibility: We customize profile dies, handle hardware brands (e.g., German Siegenia, Hoppe, or Roto), and private-label packaging for established German window brands.
Frequently Asked Questions (FAQ) for Hamburg Buyers & Importers
Q1. What U-values do your aluminium folding stacking doors achieve for GEG compliance in Germany?
Depending on the profile frame depth (65mm to 150mm), polyamide thermal break width, and glass configuration (e.g., 6mm Low-E + 16Ar + 6mm + 16Ar + 6mm Low-E with warm edge spacer), our systems achieve overall U-values ($U_w$) between 0.8 W/m²K and 1.1 W/m²K. We provide official test documentation to support your building approval submittals.
Q2. How do ZENIC doors handle coastal weather and saline corrosion in Northern Germany?
We treat all extrusions with Qualicoat Class 2 fluorocarbon powder coating or anodizing layer up to 25 microns thick. This process resists salt spray corrosion, UV radiation, and chalking under severe C4/C5 marine weather conditions common in the Hamburg port and North Sea region.
Q3. What is the typical lead time and shipping route to the Port of Hamburg?
Production lead time is typically 15 to 25 days following shop drawing approval and deposit receipt. Ocean freight from Foshan / Shenzhen port directly to the Port of Hamburg takes approximately 28 to 35 days. We coordinate FOB, CIF, or DDP delivery terms according to your logistical requirements.
Q4. Can your stacking doors incorporate flush low-threshold transitions?
Yes. We offer fully integrated flush floor tracks (Barrierefrei according to DIN 18040-2) equipped with concealed sub-surface drainage channels. This system allows zero-step indoor-to-outdoor transitions without compromising driving rain resistance.
Q5. What is the Minimum Order Quantity (MOQ) for custom project exports?
Our MOQ starts at 50 square meters or per project basis. Importers and developers can mix different window and door types (casement, tilt-and-turn, sliding stackers, bi-folds) within a single 20ft or 40ft shipping container to optimize freight costs.
Q6. Do you supply architectural CAD / BIM shop drawings for project specification?
Yes. Our in-house engineering design team provides detailed CAD DWG elevations, structural wind load calculation reports, cross-sectional connection details, and BIM models within 24–48 hours upon receiving your project window schedule.
Partner with China’s Leading Export Manufacturer for Hamburg Projects
Elevate your building envelope performance with precision-engineered aluminium folding stacking doors. Contact our engineering team today to receive custom shop drawings, technical specifications, and factory-direct wholesale quotations.
